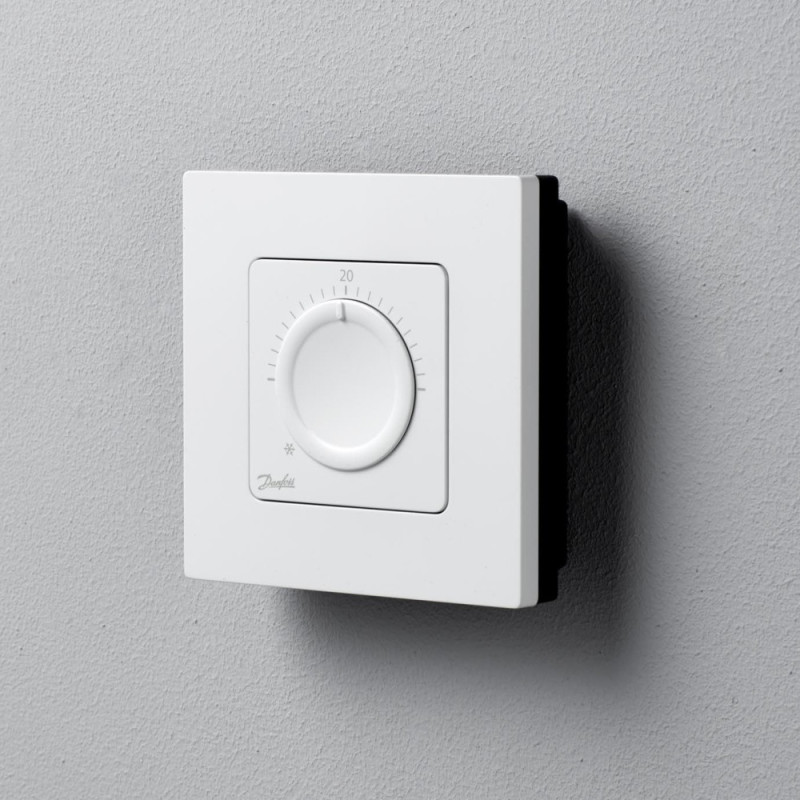

Danfoss Thermostat Icon Dial, +5...30 °C, mechanical, wired, surface-mounted, 230V, white (088U1005)

The Danfoss Icon Dial is a room thermostat designed to control hydraulic underfloor heating systems without floor temperature control. It features a built-in air temperature sensor with a thermal accelerator. It can be used with both normally open (NO) and normally closed (NC) 230V thermo-electro drives (no more than 5 drives per thermostat). The user can set the desired air temperature in the room within a range from (frost protection) 5 °C to +30 °C using the rotary dial. The temperature adjustment range can be limited using the restrictors located under the dial (mechanical limitation of the knob's rotation).
