Wilo Circulation pump Star-Z Nova T, G 1, 10 bar, 138mm, 7W, 230V (4222650)
Brand: Wilo
Product Code: 4222650
All about product
Description
Specification
Reviews
0
Questions0
Delivery
Payment

Wilo Circulation pump Star-Z Nova T, G 1, 10 bar, 138mm, 7W, 230V (4222650)
9,274.00 ₴
Description
Hot water circulation pump Wilo-Star-Z NOVA T (wet rotor design) for a detached house. Pipeline pump, lock-up resistant synchronous motor with high starting torque. The pump body is made of brass, the impeller is made of noril, the shaft is made of ceramics. Power consumption is 6 W. Standard with thermal insulation, body thread Rp ½.
Specifications
Engine
Protection class
IP42
Radiation interference
EN 61000-6-3
Resistance to obstacles
EN 61000-6-2
Power consumption P1 max
7 kW
Max. speed nmax
3000 1/min
Cable gland
1 x PG11
Guarantee
Guarantee
12 мес.
Main
A type
насос циркуляційний
Series
Star-Z
Temperature range
+2 … +95 , +2 … +40 °C (навкол. серед.)
Pressure, bar
10
Threaded pipe connection
G 1
Rated current
0,05 A
Temperature range at a maximum ambient temperature of +40 °C T
+2...+65
Max. permissible total hardness in drinking water circulation systems
3.57 mmol/l (20 °dH)
Materials
Shaft
Ceramics
Impeller
PPE/PS-GF30
Pump housing
Brass
Bearing material
Graphite impregnated with synthetic resin
Physical
The weight, kg
1.6
Installation length, mm
138
Pipe connection on the suction side DNs
G 1
Pipe connection on the discharge side DNd
G 1

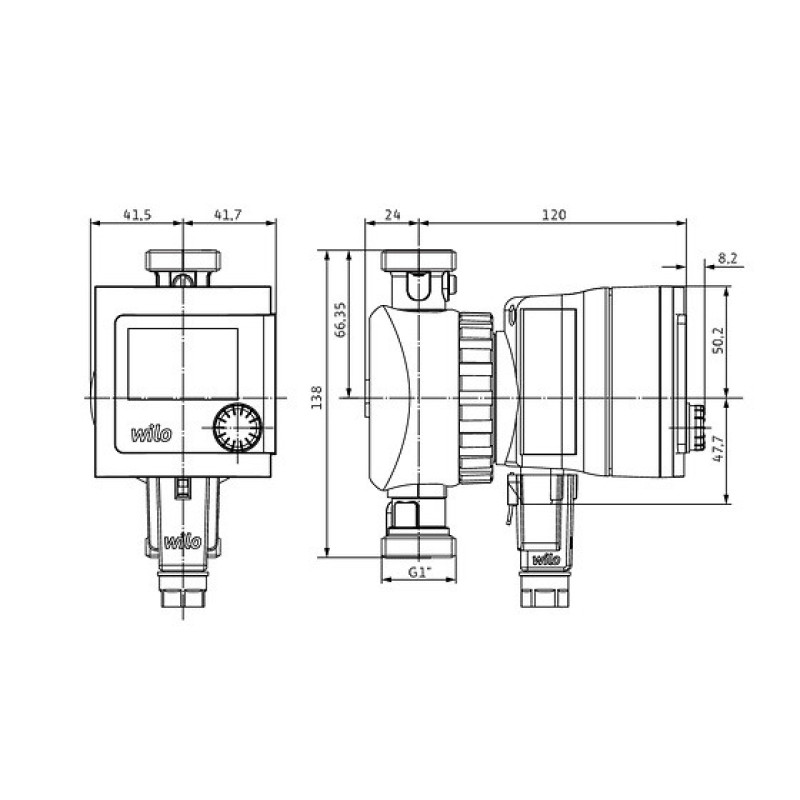

Instrument dimensions
152х83х138
