Wilo Circulation pump Star-Z Nova A, G 1, 10 bar, 138mm, 5W, 230V (4132761)

Name: Wilo Circulation pump Star-Z Nova A, G 1, 10 bar, 138mm, 5W, 230V (4132761)
Brand: Wilo
SKU: 4132761
Price: 5.650.00 UAH
Availability: InStock

Brand: Wilo Product Code: 4132761

All about product

Description

Specification

Reviews 0

Questions0

new

ХІТ

ends

Wilo Circulation pump Star-Z Nova A, G 1, 10 bar, 138mm, 5W, 230V (4132761)

In Stock

5,650.00 ₴

Found cheaper?

Buy this product in 1 click:

Guarantee:12 мес.

Package contents:Pump, Thermal insulation, Wilo connector, Consolidation, User manual

A type:насос циркуляційний

Series:Star-Z

Country of origin:Germany

Delivery

Nova Poshta by courier around the city

according to the carrier's tariffs

Nova Poshta at the branch and post office

according to the carrier's tariffs

Payment

ApplePay

payment on account

in cash

Wilo Circulation pump Star-Z Nova A, G 1, 10 bar, 138mm, 5W, 230V (4132761)

5,650.00 ₴

Description

Hot water circulation pump Wilo Star-Z Nova - with wet rotor and threaded connection. It is used for pumping drinking water. Wilo Star-Z Nova pumps are equipped with a synchronous electric motor that consumes a small amount of electricity. Thanks to the wet rotor, the motor is protected from overheating.

Tags: Wilo, Circulation, pump, StarZ, Nova, A, G, 1, 10, bar, 138mm, 5W, 230V, 4132761

Specifications

Additional information

Package contents

Pump, Thermal insulation, Wilo connector, Consolidation, User manual

Country of origin

Germany

Engine

Protection class

IP42

Radiation interference

EN 61000-6-3

Resistance to obstacles

EN 61000-6-2

Power consumption P1 max

5 kW

Max. speed nmax

3000 1/min

Cable gland

1 x PG11

Guarantee

12 мес.

Main

A type

насос циркуляційний

Series

Star-Z

Temperature range

+2 … +95 , +2 … +40 °C (навкол. серед.)

Pressure, bar

Insulation class

Threaded pipe connection

G 1

Rated current

0,05 A

Temperature range at a maximum ambient temperature of +40 °C T

+2...+65

Max. permissible total hardness in drinking water circulation systems

3.57 mmol/l (20 °dH)

Materials

Shaft

Ceramics

Impeller

PPE/PS-GF30

Pump housing

Brass

Bearing material

Graphite impregnated with synthetic resin

Physical

The weight, kg

Installation length, mm

138

Pipe connection on the suction side DNs

G 1

Pipe connection on the discharge side DNd

G 1

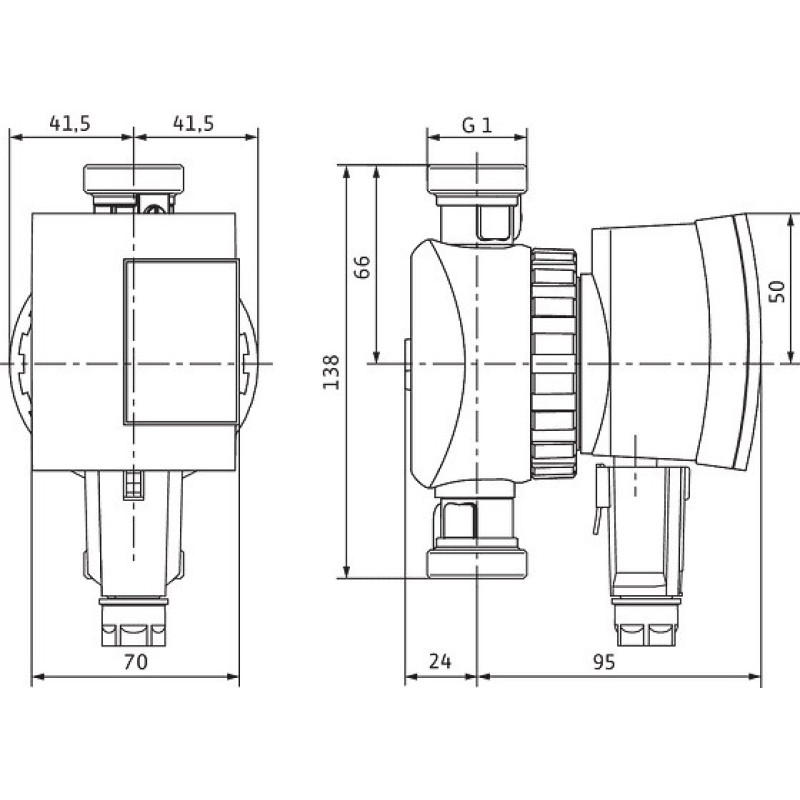

Instrument dimensions

119х83x138
