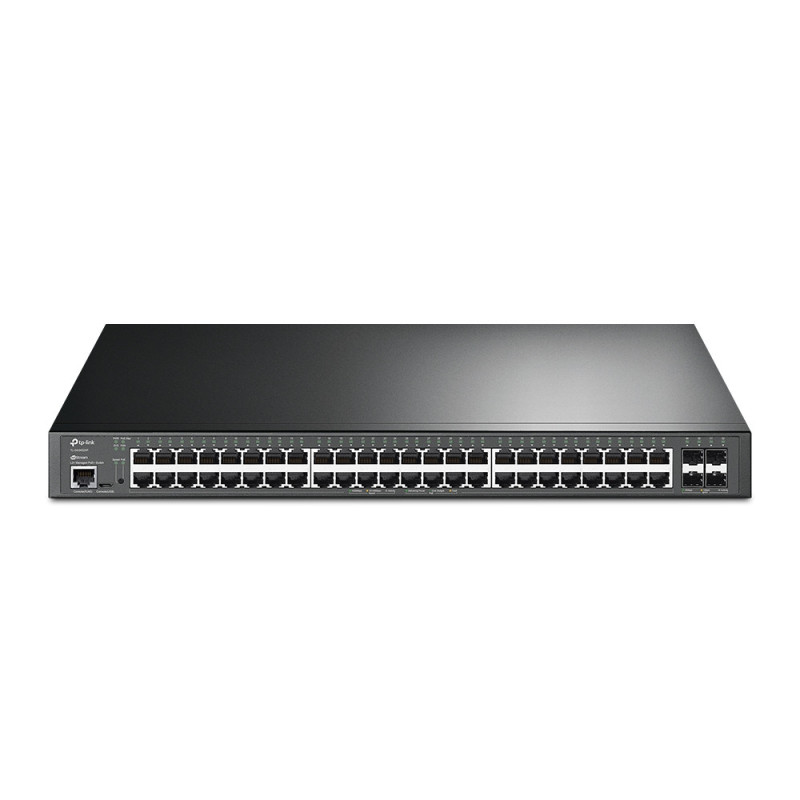

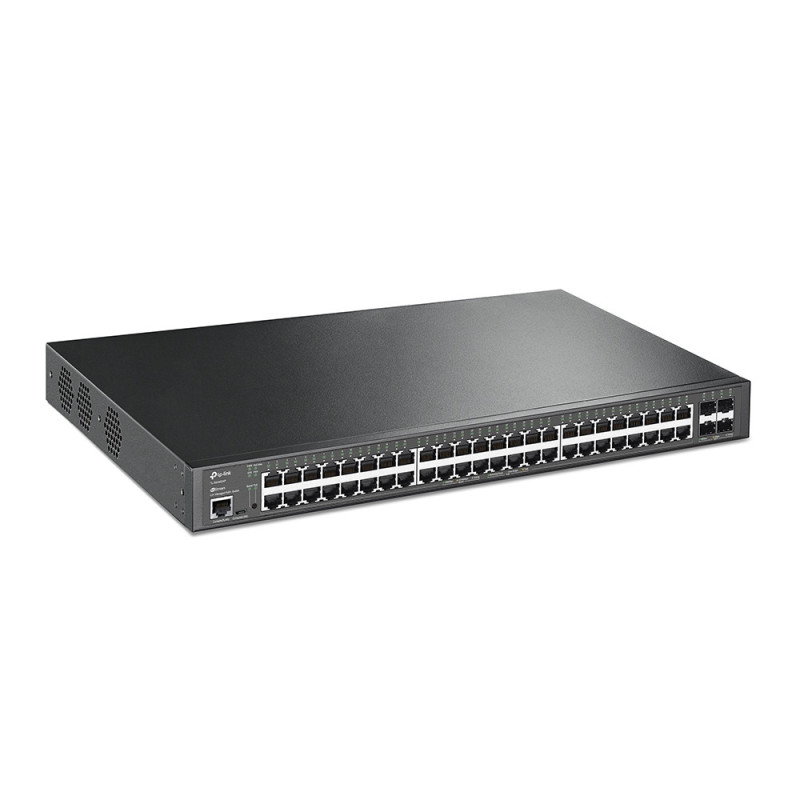

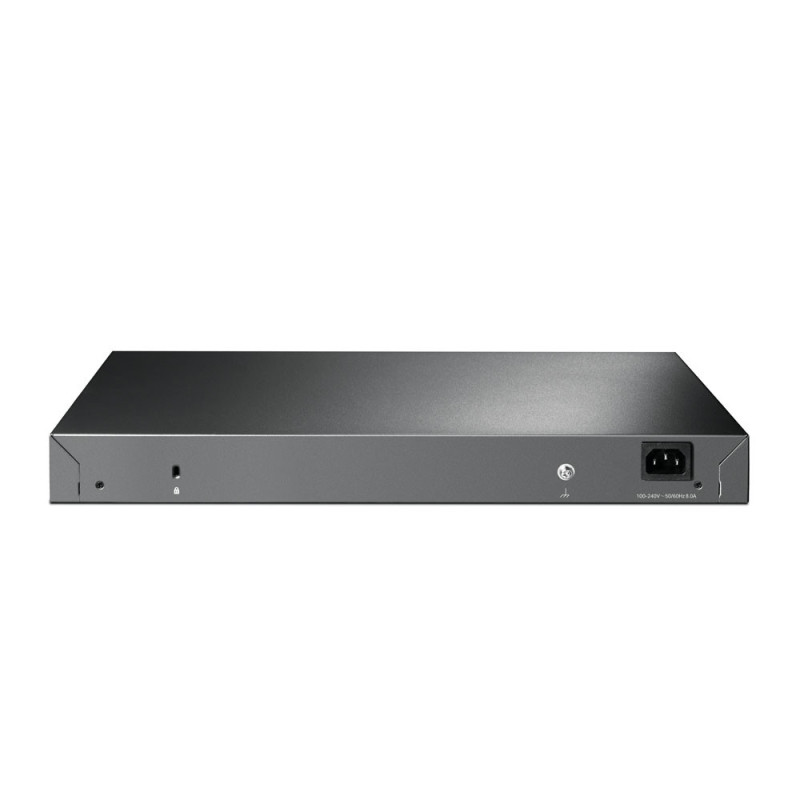

TP-Link Switch SG3452XP 48xGE (48xPoE), 4xSFP+, 500W, Managed L2

Brand: TP-Link Product Code: SG3452XP
0
All about product
Description
Specification
Reviews 0
Questions0
In Stock
42999.00 ₴
Found cheaper?
Buy this product in 1 click:
Guarantee:5 лет
Features:MIBs
Operating temperature:from 0 to 40 °C
A type:Switch
Storage temperature:from -40 to 70 °C
Delivery
Nova Poshta by courier around the city Nova Poshta by courier around the city
according to the carrier's tariffs
Nova Poshta at the branch and post office Nova Poshta at the branch and post office
according to the carrier's tariffs
Payment
ApplePay ApplePay
payment on account payment on account
in cash in cash
TP-Link Switch SG3452XP 48xGE (48xPoE), 4xSFP+, 500W, Managed L2
42999.00 ₴
Description
The TP-Link SG3452XP is a Layer 2+ managed gigabit switch with 48 PoE+ ports (802.3af/at) and four 10G SFP+ uplink slots. It features a 500W PoE budget, supports VLAN, static routing, IGMP snooping, and advanced security (ACL, 802.1X, DoS protection). Fully integrates with Omada SDN for centralized cloud management and smart monitoring.

Tags: TPLink, Switch, SG3452XP, 48xGE, 48xPoE, 4xSFP, 500W, Managed, L2

Specifications
Additional information
Features
MIBs
Software
Mac OS, Linux, UNIX, NetWare, Windows
Contents of delivery
rubber feet, Power cord, Switch, rack mounting kit, Installation guide
Additional Features
Support for Omada hardware (OC200/OC300), software and cloud controllers, Automatic devices detection, Smart network monitoring, Single setting, Scheduled restart, Group setting, Group firmware update, Deviations notification, Access to Cloud service, Zero-Touch Provisioning
Functional
Functions
IGMP snooping, MLD Snooping, ARP, QoS priority, Spanning Tree STP/RSTP/MSTP, 802.3x Flow Control, Link Aggregation, 802.3ad LACP, Routing statistics, Loopback Detection function, QoS, DHCP, Supports access control lists (ACLs), IGMP Snooping Querier, Proxy ARP, Flow Mirroring, IGMP Snooping Querier support, DHCP Relay, IGMP authentication, MLD Snooping Querier, MLD v1/v21, 802.1w RSTP, Many-to-One mode, One-to-One mode, IGMP v1/v2/v3 Snooping, Support of 8 priority queues, ICMP version 6, STP, Priority queue mode, Throughput capacity control, Fluid performance, Rate Limiting, Queue Schedule: SP, WRR, SP+WRR, 802.1D STP, 802.1s MSTP, CPU reflection, Fast Leave, пріоритет 802.1p CoS/DSCP, Multicast VLAN Registration (MVR), DHCP server, DHCP L2 Relay, Дія для потоків, Static ARP
Standards and Protocols
802.3at/af
PoE power budget, W
500
Certificates
CE, FCC, RoHS
Security
DHCP Snooping, Rate limiting, DoS attacks Protection, Authentication, Dynamic ARP Inspection, IPv4/IPv6 support, AAA, IP-MAC binding, IPv6-MAC-port binding, Access control by IP/port/MAC, Static/dynamic/permanent port protection, Broadcast/Multicast/Unicast network storms protection, Port isolation, secure command line interface control with SSHv1/SSHv2, DHCPv6 tracking, Secure HTTPS web interface with SSLv3/TLS1.2, 802.1X
PoE+ Support
Есть (48 портів, до 30 Вт на порт)
Control
SNMP v1/v2c/v3, RMON v1, Command Line Interface (CLI), SNTP, RMON (1, 2, 3, 9 groups), Dual Image, LLDP-MED, ICMP v6, IPv4/v6, Password recovery, Command line interface (via Telnet), Ping, System log, SNMP, Configuring MTU, SSH, SSL, LLDP-MED2, HTTP, HTTPS, TFTP, telnet, RMON Group - 1, 2, 3, 9, DHCP - Client, Cable diagnosis, DHCP automatic installation, 802.1ab LLDP/LLDP-MED, DHCP/BOOTP client, SDM template, Omada App, SNMP Trap/Inform, EEE, web user interface, Dual Configuration
VLAN
GVRP, VLAN protocol, Voice VLAN, VLAN MAC address: 30 entries, Private VLAN, QinQ, QinQ на основі портів, 802.1Q tag VLAN
Guarantee
Guarantee
5 лет
Main
A type
Switch
Ports
1 Console Port (Micro-USB), 1 Console Port (RJ45), 4 x 10G SFP+, 48 10/100/1000 Mbps RJ45 ports
Switch Type
managed
Number of ports,
52 (48xPoE, 4xSFP+)
Fan Quantity, pcs
3
Switch level
2 level, 2+
Physical
Operating temperature
from 0 to 40 °C
Storage temperature
from -40 to 70 °C
Dimensions, mm
44 x 440 x 380
Operating humidity
from 10% to 90% (без утворення конденсату)
Storage humidity
from 5% to 90% (без утворення конденсату)
Heat dissipation, BTU/h
2169.2 (110 В / 60 Гц, з підключеними пристроями живлення 500 Вт); 167.85 БТЕ/година (110 В / 60 Гц, без підключених пристроїв живлення)
Productivity
Packet transmission rate, mil.pack./sec
130.9
Switching matrix, Gbit/sec
176
MAC Address Table, k
16
Jumbo frames, Kb
9
Max. Power Consumption, W
635.7 (110 В / 60 Гц) (з пристроями живлення 500 Вт); 49.19 Вт (110 В / 60 Гц) (без пристроїв живлення)
