D-Link Industrial Switch DIS-100G-5SW 4xGE, 1xSFP
Brand: D-Link
Product Code: DIS-100G-5SW
All about product
Description
Specification
Reviews
0
Questions0
Delivery
Payment

D-Link Industrial Switch DIS-100G-5SW 4xGE, 1xSFP
11088.00 ₴
Description

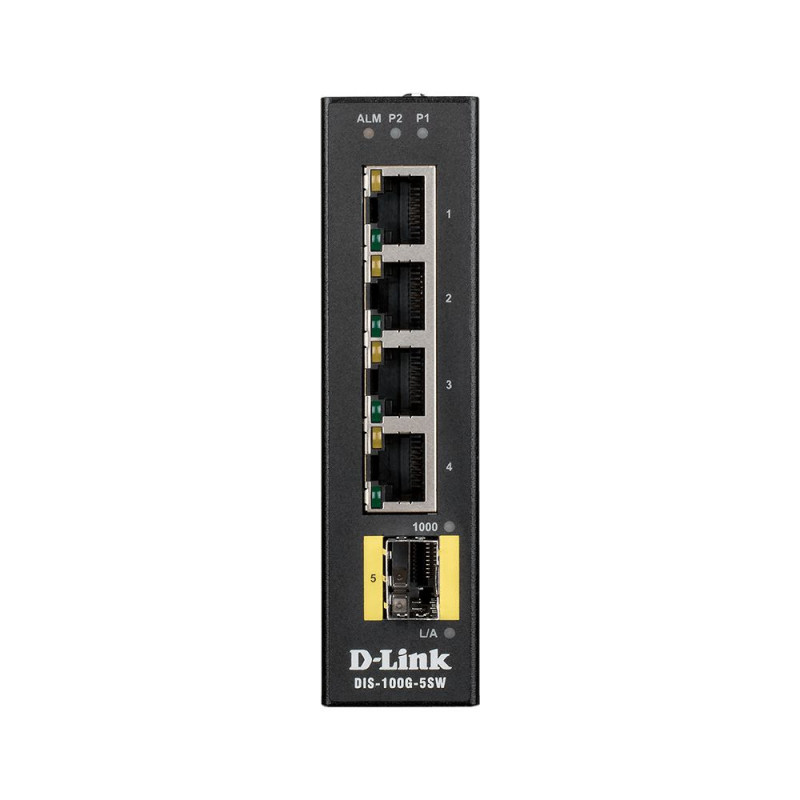

Industrial Unmanaged Switch with 4 10/100 / 1000Base-T ports, 1 1000Base-X SFP port, power saving and QoS support. Plug-and-play Industrial switch ideal for deployment in industrial and outdoor cabinet surveillance settings. Durable, Reliable, and Efficient. The DIS-100G Series switches are housed in a highly resistant IP30-rated metal casing to protect the switches from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-100G Series from unwanted effects when operating in environments with strong electromagnetic interference.
Specifications
Additional information
Additional Features
Broadcast/Multicast/Unicast Storm Protection
Functional
Functions
DIP switch оповіщення про збої живлення; захист від широкомовного шторму
Standards and Protocols
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3az Energy-Efficient Ethernet (EEE), IEEE 802.1p QoS, IEEE 802.3z 1000BASE-X, IEEE 802.3ab 1000BASE-T, IEEE 802.3az
Media interfaces
Automatic detection of MDI/MDIX on all ports
Guarantee
Guarantee
12 мес.
Main
A type
Switch
Ports
Relay output 1 A/24 V for power failure notification, 4 x 10/100/1000Base-T, 1 x 1000Base-X SFP
Switch Type
unmanaged
Transmission Method
Store-and-forward
Indicators
ALM, P1/P2, Link/Activity/Speed (per port)
Cooling
passive
Physical
Housing material
metal стандарт IP30
Operating temperature
from -40 to 75 °C
Storage temperature
from -40 to 85 °C
Power Supply
12-58 В DC (з можливістю підключення до двох джерел живлення (не входять в комплект поставки))
Operating humidity
from 5% to 95% без конденсату
Storage humidity
from 5% to 95% без конденсатуї
Heat dissipation, BTU/h
13.03
Productivity
Switching matrix, Gbit/sec
10
MAC Address Table, k
2
Jumbo frames, Kb
9
Max. Power Consumption, W
3.82
Forwarding Rate, Mbit/sec
7.44 (64-байтних пакетів)
