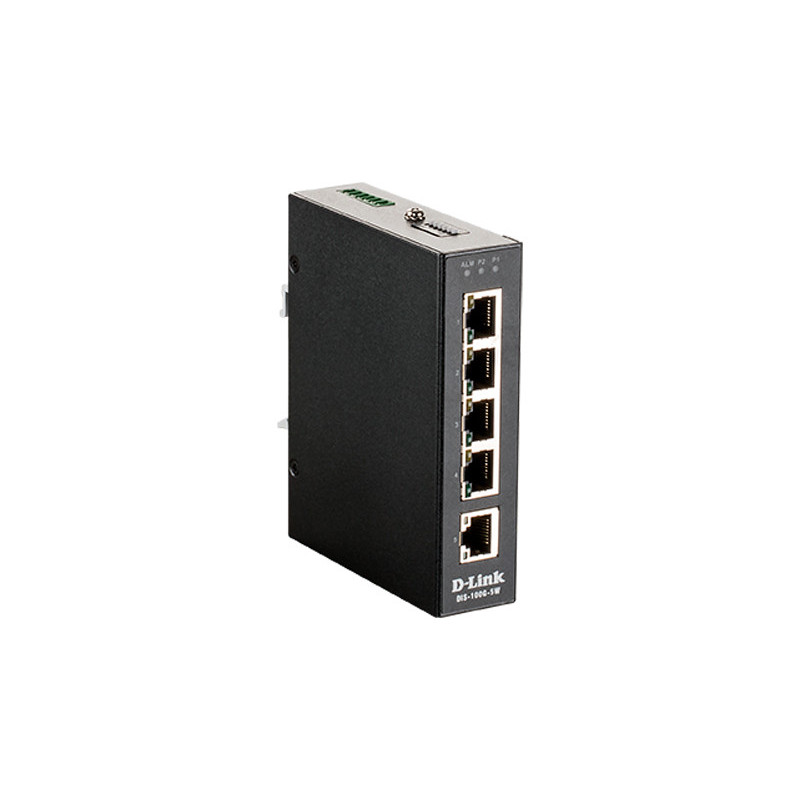

D-Link DIS-100G-5W

Brand: D-Link Product Code: DIS-100G-5W
0
All about product
Specification
Reviews 0
Questions0
Out Of Stock
6293.00 ₴
Guarantee:12 мес.
The weight, g:320
Housing material:metal IP30 standard
Operating temperature:from -40 to 75 °C
A type:Switch
Delivery
Nova Poshta by courier around the city Nova Poshta by courier around the city
according to the carrier's tariffs
Nova Poshta at the branch and post office Nova Poshta at the branch and post office
according to the carrier's tariffs
Payment
ApplePay ApplePay
payment on account payment on account
in cash in cash
D-Link DIS-100G-5W
6293.00 ₴
Specifications
Additional information

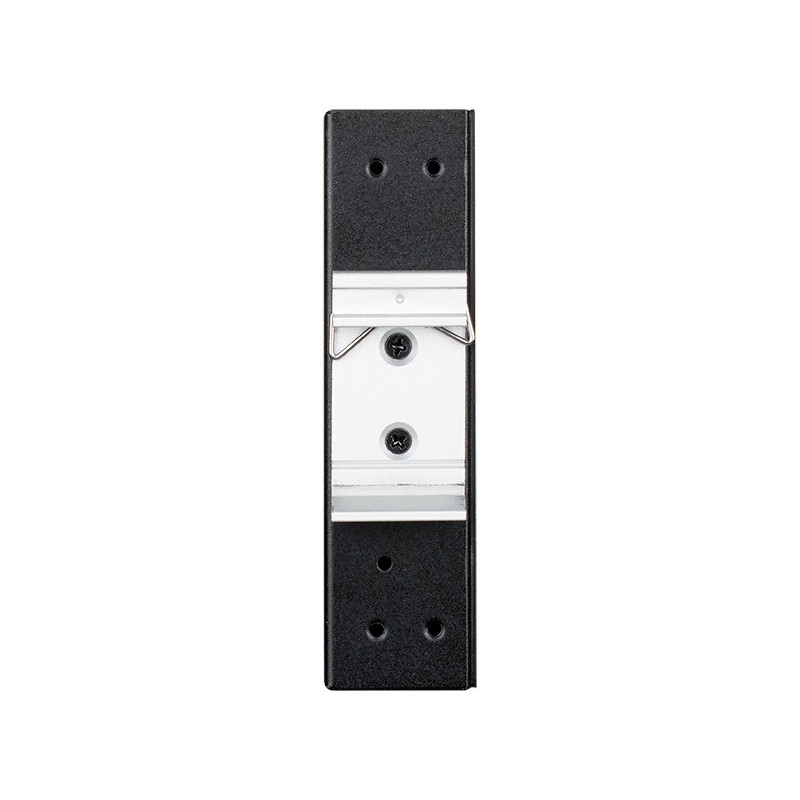

Can be mounted on the wall
Есть
Contents of delivery
Quick Setup Guide, Installation kit, Switch, Terminal block, DIN rail mounting kit
Additional Features
Power Failure Alert
Functional
Standards and Protocols
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control, IEEE 802.3az Energy-Efficient Ethernet (EEE), IEEE 802.1p QoS, Auto MDI/MDIX support for 1000/10GBASE-T, IEEE 802.3ab 1000BASE-T
Security
Broadcast/Multicast/Unknown Unicast Storm protection
Guarantee
Guarantee
12 мес.
Main
A type
Switch
Ports
5 x 10/100/1000Base-T, Relay output 1 A/24 V for power failure notification
Switch Type
unmanaged, industrial
Transmission Method
Store-and-forward

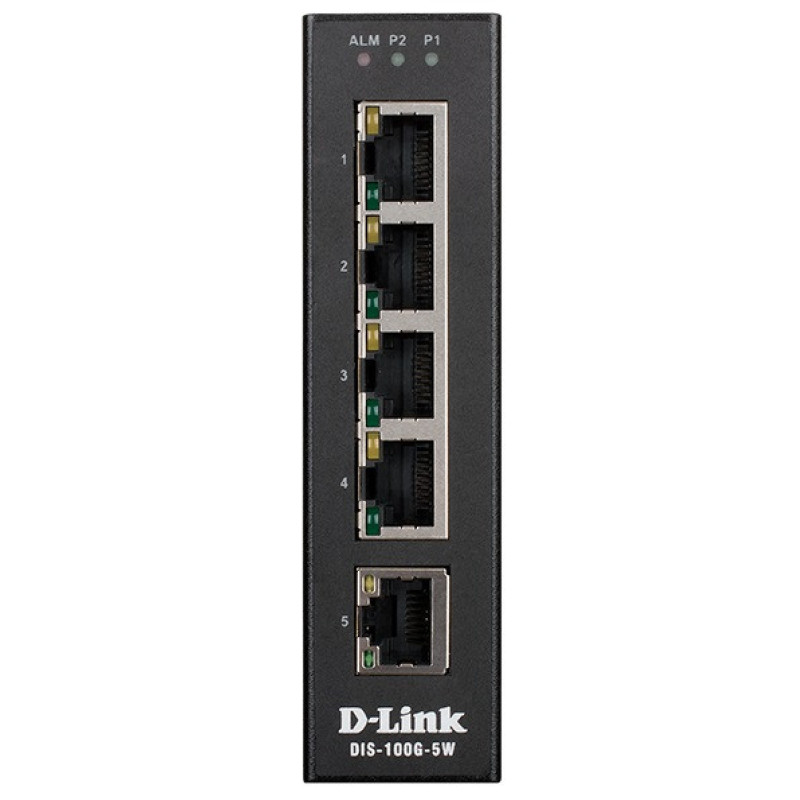

Indicators
Link/Active/Speed (per port), ALM, P1/P2
Physical
The weight, g
320
Housing material
metal IP30 standard
Operating temperature
from -40 to 75 °C
Storage temperature
from -40 to 85 °C
Power Supply

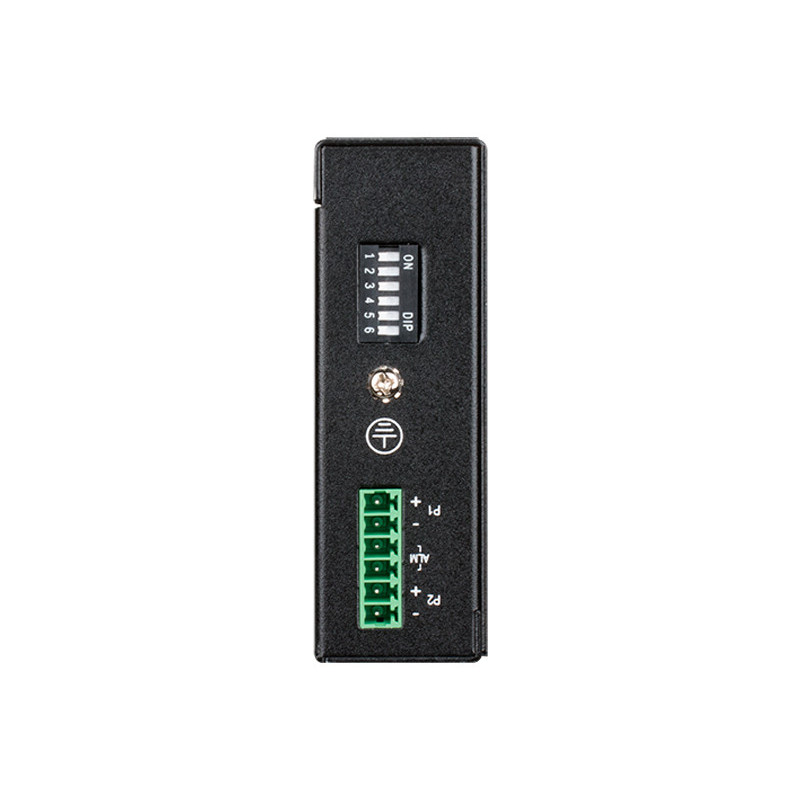

DC: terminal block for connection to two independent power supplies1 (from 12 V to 58 V DC)
Dimensions, mm
89.4 x 29.1 x 112.2
Operating humidity
from 5% to 95%
Storage humidity
from 5% to 95%
Heat dissipation, BTU/h
10.85
Productivity
MAC Address Table, notes
2000
Switching matrix, Gbit/sec
10
Jumbo frames, Kb
9
Max. Power Consumption, W
3.18
Forwarding Rate, Mbit/sec
7.44
