LEAPTON Solar panel Leapton Solar LP182x199-M-66-NH-580W, Mono, TopCon, MBB, Halfcell, Silver frame (LP182M66-NH-580W/SF)

Brand: LEAPTON Product Code: LP182M66-NH-580W/SF
0
All about product
Description
Specification
Reviews 0
Questions0
new
Sold Out
Out Of Stock
5,334.00 ₴
Guarantee:25 лет
Features:protection against dust and moisture according to IP68 standard, технологія MBB (Multi Busbar)
A type:Monocrystalline (Multi Bus Bar, N-Type, TopCon)
The weight, kg:27
Height, mm:2279
Delivery
Nova Poshta by courier around the city Nova Poshta by courier around the city
according to the carrier's tariffs
Nova Poshta at the branch and post office Nova Poshta at the branch and post office
according to the carrier's tariffs
Payment
ApplePay ApplePay
payment on account payment on account
in cash in cash
LEAPTON Solar panel Leapton Solar LP182x199-M-66-NH-580W, Mono, TopCon, MBB, Halfcell, Silver frame (LP182M66-NH-580W/SF)
5,334.00 ₴
Description

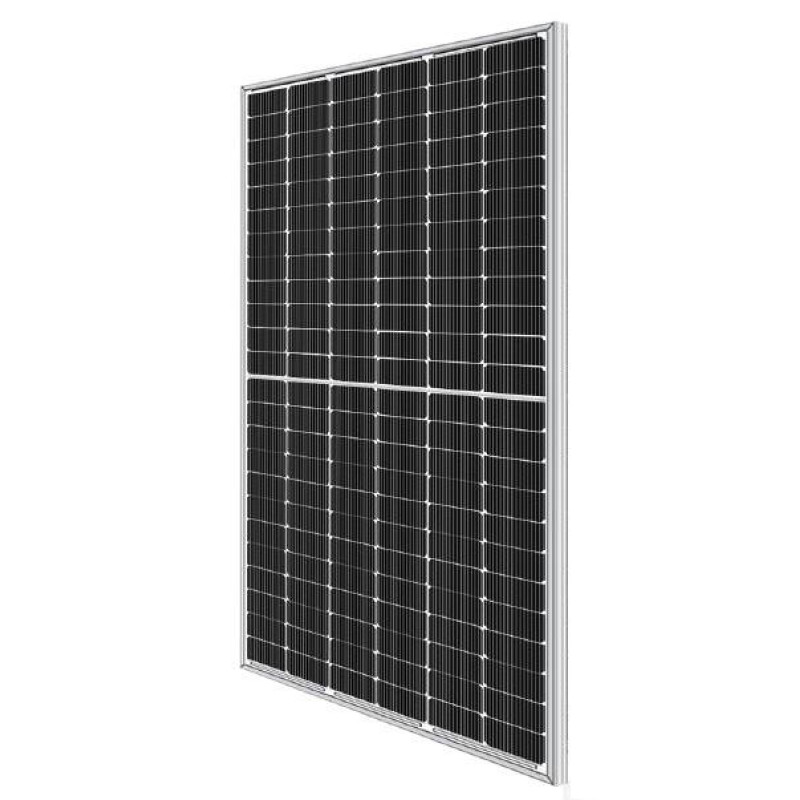

The Leapton Solar LP182x199-M-66-NH-580W photovoltaic panel delivers 580 W using N-Type TopCon technology with monocrystalline half-cut cells. Module efficiency reaches 22.44 %, with mechanical load resistance of 2400 Pa (wind) and 5400 Pa (snow). The panel includes 3.2 mm tempered glass with anti-reflective coating, anodized aluminum frame and IP68 protection. Maximum system voltage of 1500 V supports long strings. Product warranty is 25 years, performance warranty is 30 years (87.4 % of initial power).

Tags: LEAPTON, Solar, panel, Leapton, Solar, LP182x199M66NH580W, Mono, TopCon, MBB, Halfcell, Silver, frame, LP182M66NH580WSF

Specifications
Additional information
Features
protection against dust and moisture according to IP68 standard, технологія MBB (Multi Busbar)
Coating
tempered glass with AR coating
Certification
ISO9001, ISO14001, CQC, MCS, TUV, CE, JPEA, SA
Elements
66 х 2 cells (182х199mm)
Frame
anodized aluminum
Connector Type
MC4, cable 2x1200mm, cross section 4mm2
Guarantee
Guarantee
25 лет
Main
A type
Monocrystalline (Multi Bus Bar, N-Type, TopCon)
Efficiency
22.44%
Maximum power (Pmax), W
580
Voltage Maximum Power (Vmp), V
40.31
Current at Maximum Power (Imp), A
14.39
Voltage open circuit Voc, V
48.22
Short-circuit current (Isc), A
15.22
Maximum system voltage, V
1500
Temperature coefficient (Isc)
+0.046
Temperature coefficient (Voc)
-0.25
Temperature coefficient (Pmax)
-0.30
Front load, Pa
5400
Rear load, Pa
2400
Physical
The weight, kg
27
Height, mm
2279
Width, mm
1134
Depth, mm
30
Performance Guaranteed
Linear 10 years 94% of P.max, 30 years 87.4% of P.max
