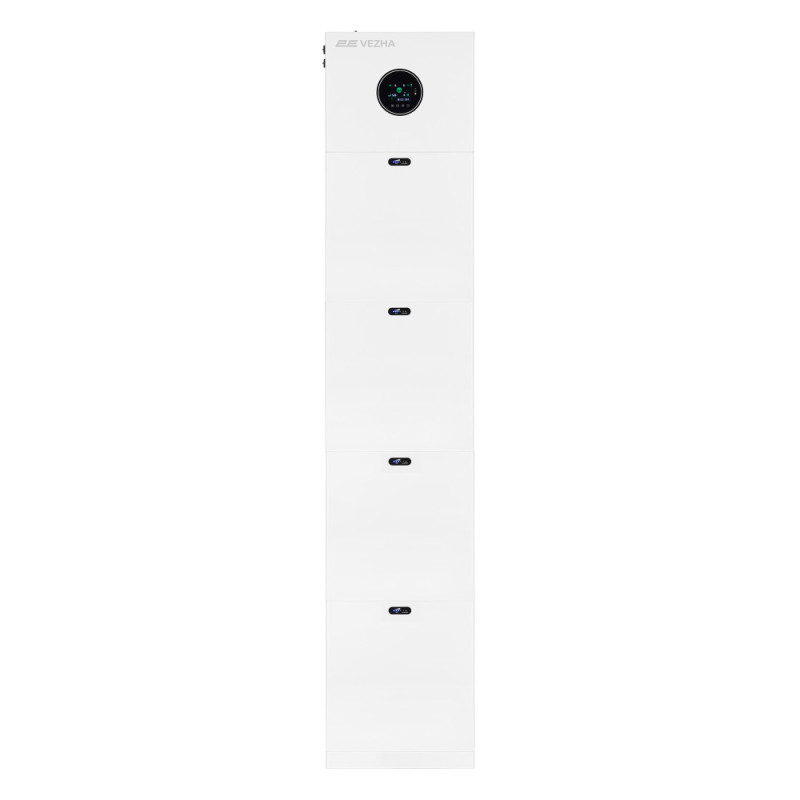

2E Energy Storage System Power Wall Vezha, 5000W, 20.48 kWh, WiFi (2E-ESS-PWV5-20)

Name: 2E Energy Storage System Power Wall Vezha, 5000W, 20.48 kWh, WiFi (2E-ESS-PWV5-20)
Brand: 2E
SKU: 2E-ESS-PWV5-20
Price: 199999.00 UAH
Availability: InStock

Brand: 2E Product Code: 2E-ESS-PWV5-20

All about product

Description

Specification

Reviews 0

Questions0

new

ends

2E Energy Storage System Power Wall Vezha, 5000W, 20.48 kWh, WiFi (2E-ESS-PWV5-20)

In Stock

199999.00 ₴

Found cheaper?

Guarantee:12 мес.

A type:backup power system

Rated output power, W:5000

Maximum peak power, VA:10000

Power factor:1

Delivery

Nova Poshta by courier around the city

according to the carrier's tariffs

Nova Poshta at the branch and post office

according to the carrier's tariffs

Payment

ApplePay

payment on account

in cash

2E Energy Storage System Power Wall Vezha, 5000W, 20.48 kWh, WiFi (2E-ESS-PWV5-20)

199999.00 ₴

Description

The PowerWall VEZHA is a powerful new generation backup power system. Equipped with a 5,000W hybrid inverter, battery modules and a 5.5 kW MPPT controller, it supports charging from the grid and solar panels, selling energy to the grid and operating with multi-zone tariffs. The innovative wireless architecture, intelligent BMS, pure sine wave and 2E Smart Energy mobile app provide convenience, reliability and full control.

Tags: 2E, Energy, Storage, System, Power, Wall, Vezha, 5000W, 2048, kWh, WiFi, 2EESSPWV520

Specifications

AC Input

Rated input voltage

переменного тока VAC

Input voltage range

90~280 VAC

Maximum charging power from AC mains, W

3150

Maximum AC input current, A

AC Output

Rated output power, W

5000

Frequency

50 Hz

Overload current, A

Maximum output current, A

Energy Conservation Module Parameters

Battery type

LiFePO4

Battery power

20.48 kWh

Battery capacity, A·h

100

Rated battery voltage, V

51.2

Battery operating voltage range

44,8 ~ 57,6 V

Standard charging current, A

Standard discharging current, A

Maximum charging current, A

100

Maximum discharging current, A

100

DOD discharge depth

80 %

Maximum number of parallel connected batteries

Estimated battery life

6000 cycles (80% DOD, 0.5C, 25°C)

Operating temperature

charging: 0 ~45 °C, discharge: -10 ~45 °C

Operating humidity

5 % ~ 85 %

Rated operating height

< 3000 m

Protection level

IP20

Recommended operating environment

rooms

Weight, kg

Dimensions (LxWxH)

500 х 500 х 140

Installation method

vertically

Guarantee

12 мес.

Inverter Parameters

Rated output power, W

5000

Maximum peak power, VA

10000

Power factor

Rated output voltage (VAC)

220

Frequency

50 Hz

Automatic switching time

<10 ms

Harmonic distortions

<3%

Inverter Physical Parameters

Operating temperature range

15 °С ~ 55 °С

Storage temperature range

-25 °С ~ 60 °С

Humidity range

5% to 95%

Rated operating height

<2000 m

Cooling mode

air cooling

Noise level

60 dB

Protection level

IP20

Weight, kg

Dimensions (LxWxH)

500 х 400 х140

Certification

CE (EN62109-1)

EMC certification level

EN61000

Main

A type

backup power system

PV Input

Type of charging from a photovoltaic panel

MPPT

Maximum input power, W

5500

Maximum input current from the PV panel, A

100

PV panel operating voltage range

120~500 V

MPPT voltage range

120~450 V
