Wilo Pump HiMulti 3-45 P, for water supply, 4 m3/h, 8 bar, 0.8 kW, 230V (4194284)

Brand: Wilo Product Code: 4194284
0
All about product
Description
Specification
Reviews 0
Questions0
new
Sold Out
Out Of Stock
28,376.00 ₴
Guarantee:12 мес.
Package contents:pump, manual, electrical quick release connector, 2 plastic connectors with seals for manual connection to the inlet pipe
The weight, kg:11
Application:for clean water
Additionally:single-phase
Delivery
Nova Poshta by courier around the city Nova Poshta by courier around the city
according to the carrier's tariffs
Nova Poshta at the branch and post office Nova Poshta at the branch and post office
according to the carrier's tariffs
Payment
ApplePay ApplePay
payment on account payment on account
in cash in cash
Wilo Pump HiMulti 3-45 P, for water supply, 4 m3/h, 8 bar, 0.8 kW, 230V (4194284)
28,376.00 ₴
Description
Multistage, horizontal, dry rotor centrifugal pump, self-priming, with directly flanged motor. Mechanical seal in the shaft passage, maintenance-free. For pumping and boosting the pressure of potable or lightly polluted water in the residential and agricultural sector and other industries. Water supply from wells, irrigation tanks, rainwater irrigation, pressure boosting. Two-pole single-phase motor with cable gland, capacitor in terminal box, safety switch with automatic reset.

Tags: Wilo, Pump, HiMulti, 345, P, for, water, supply, 4, m3h, 8, bar, 08, kW, 230V, 4194284

Specifications
Additional information
Package contents
pump, manual, electrical quick release connector, 2 plastic connectors with seals for manual connection to the inlet pipe
The weight, kg
11
Additionally
single-phase

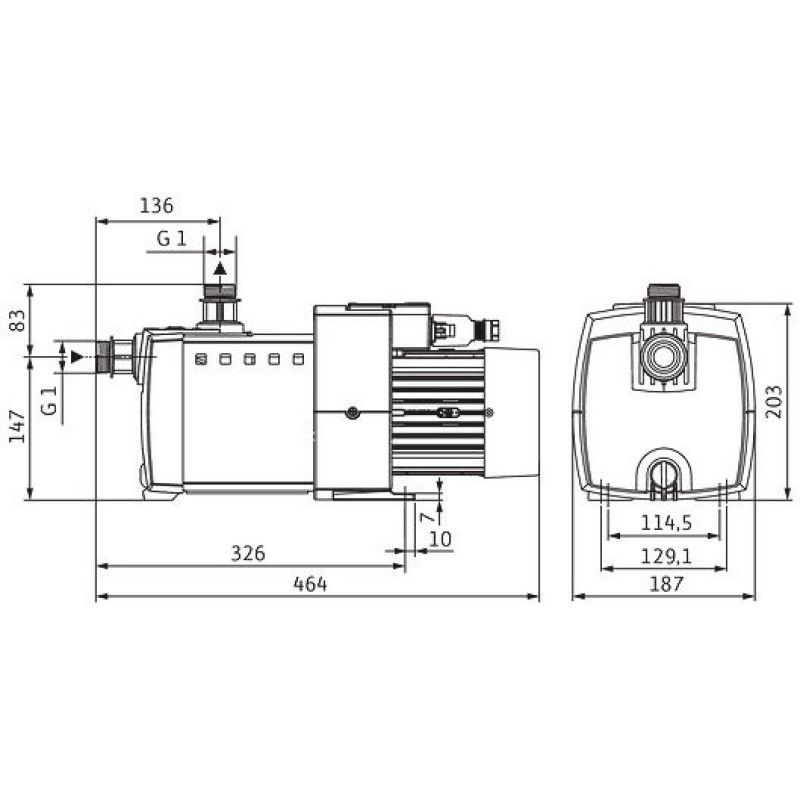

Dimensions
464х187х203
Connection to the pipeline from the pressure side
G 1
Engine
Voltage, V
230
Frequency, Hz
50
Motor type
electric
Mains connection
1~230 V, 50 Hz
Rated motor power P2, kW
0.8
Voltage tolerance
+10/-15 %
Nominal current IN, A
4.6
Nominal number of revolutions n, 1/min
2900
Insulation class
F
Degree of water protection
IP X4
Guarantee
Guarantee
12 мес.
Main
Application
for clean water
A type
surface pump
Supply temperature, max., °C
35
Feed height, m
51
Connecting thread
G1
Drive shaft
stainless steel
Operating pressure, bar
8
Pumped water temperature
40
Ambient temperature T, °C
35
Maximum feed rate, l/min
100
Maximum expenses
4
Materials
Body material
PA6T/6I-GF40
Shaft
stainless steel
Impeller
PPE/PS-GF30
Sealing material
EPDM
