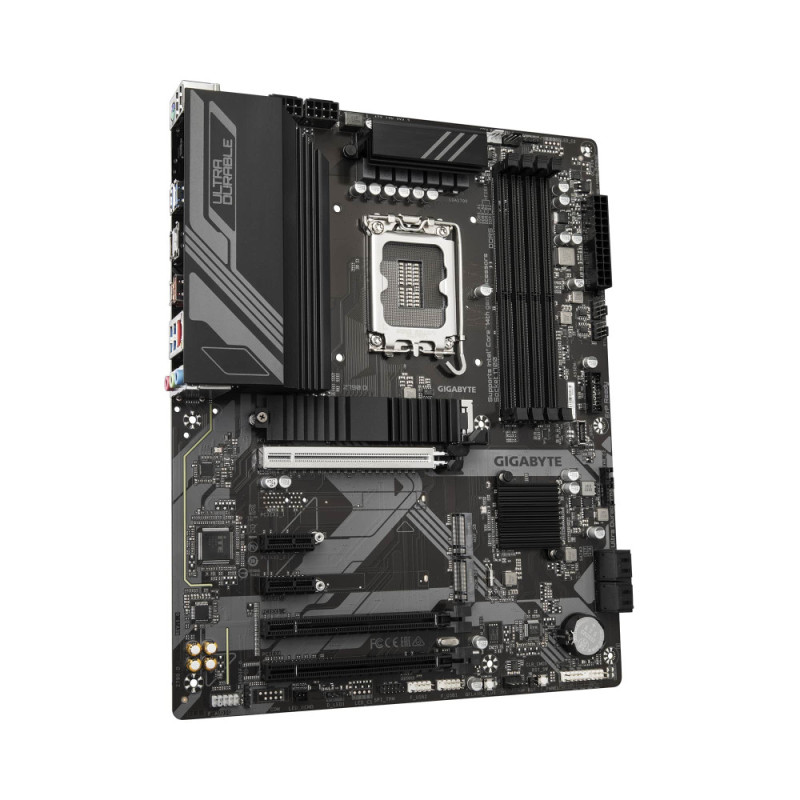

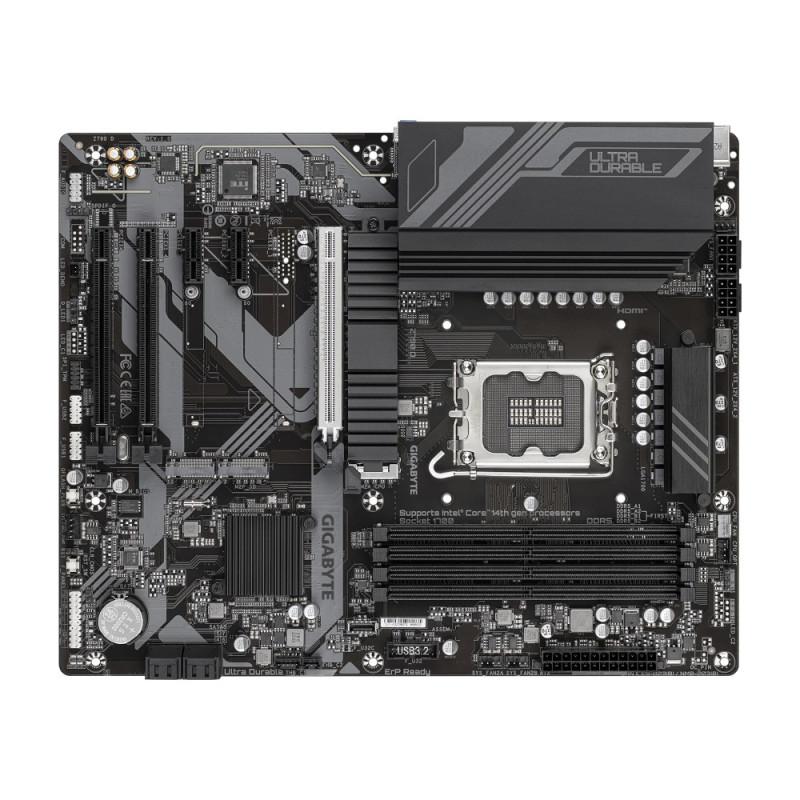

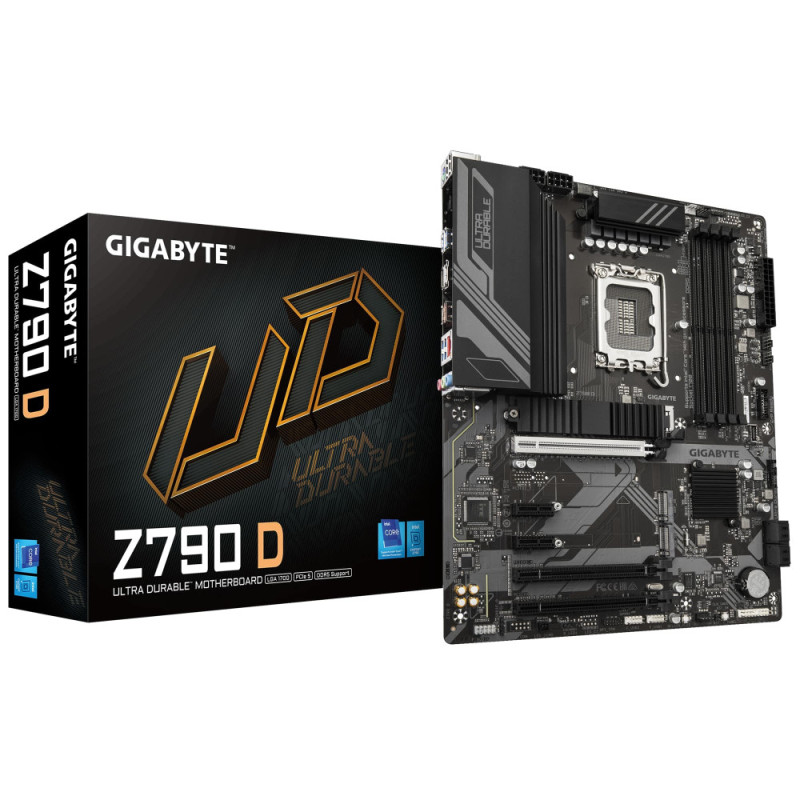

Gigabyte Motherboard Z790 D s1700 Z790 4xDDR5 M.2 HDMI DP ATX (Z790_D)

Name: Gigabyte Motherboard Z790 D s1700 Z790 4xDDR5 M.2 HDMI DP ATX (Z790_D)
Brand: Gigabyte
SKU: Z790_D
Price: 8.248.00 UAH
Availability: OutOfStock

Brand: Gigabyte Product Code: Z790_D

All about product

Description

Specification

Reviews 0

Questions0

new

Sold Out

Gigabyte Motherboard Z790 D s1700 Z790 4xDDR5 M.2 HDMI DP ATX (Z790_D)

Out Of Stock

8,248.00 ₴

Guarantee:36 мес.

Features:S/PDIF out header, Thunderbolt™ add-in card connector, CPU fan header, system fan headers, clear CMOS jumper, reset button, Front panel audio connector, Support for Windows 10 64-bit, Q-Flash Plus button, Q-Flash utility, Front Panel Header, Addressable LED Header, TPM Header, Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control, system fan/water cooling pump header, Утиліта Q-Flash Plus, Water cooling flow rate detection, Support for Windows 11 64-bit, Internet Security, LAN bandwidth management software

Towards:gaming (overclocking)

Form Factor:ATX

Connection type:LGA1700

Delivery

Nova Poshta by courier around the city

according to the carrier's tariffs

Nova Poshta at the branch and post office

according to the carrier's tariffs

Payment

ApplePay

payment on account

in cash

Gigabyte Motherboard Z790 D s1700 Z790 4xDDR5 M.2 HDMI DP ATX (Z790_D)

8,248.00 ₴

Description

The GIGABYTE Z790 D is a high-performance ATX motherboard designed for Intel's 14th, 13th, and 12th Gen processors (LGA1700). It supports ultra-fast DDR5 memory (up to 7600 MT/s overclocked) with four DIMM slots and a maximum capacity of 256GB. Featuring PCIe 5.0 and 4.0 slots, it ensures top-tier performance for GPUs and storage devices.

Tags: Gigabyte, Motherboard, Z790, D, s1700, Z790, 4xDDR5, M2, HDMI, DP, ATX, Z790D

Specifications

Additional information

Features

S/PDIF out header, Thunderbolt™ add-in card connector, CPU fan header, system fan headers, clear CMOS jumper, reset button, Front panel audio connector, Support for Windows 10 64-bit, Q-Flash Plus button, Q-Flash utility, Front Panel Header, Addressable LED Header, TPM Header, Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control, system fan/water cooling pump header, Утиліта Q-Flash Plus, Water cooling flow rate detection, Support for Windows 11 64-bit, Internet Security, LAN bandwidth management software

Audio settings

Аudiochip

Realtek®

Sound

7.1, 5.1, 2, 4

S/P-DIF

Есть

Chipset

Northbridge (chipset)

Z790

UEFI BIOS

Есть

BIOS

UEFI

Connecting drives

Connection interface

SATA 3, M.2

SATA3 (6 Gb / s)

4 ports

Support software RAID

Есть 0/1/5/10

Connection connectors

USB 2.0, pcs

6 (2 на задній панелі + 4 доступні через внутрішні роз'єми)

USB 3.2 Gen 1

7 (4 на задній панелі + 2 через внутрішні роз'єми + 1 Type-C через внутрішній роз'єм)

M.2 connector

PS/2, pcs

1 (клавіатура/миша)

CPU

Connection type

LGA1700

For processors

Intel

Processor compatibility

Intel® Celeron™ processors, Intel Core 13th Generation, Intel Core 12th Generation, Intel Core 14th Generation, Intel Pentium Gold

Guarantee

36 мес.

Main

Towards

gaming (overclocking)

Form Factor

ATX

Network interfaces

LAN (RJ-45)

100/1000/2500 Mbps

Number of LAN-ports

LAN-Controller Model

Realtek®

Physical

Dimensions (HxW)

305 x 244

Main power connector

24-pin

CPU Power

+8 x2

RAM

Connector type

DDR5

Maximum operating frequency, MHz

7600

The maximum amount of memory, GB

256

DDR5

4 slots

Video settings

Graphical interface

PCI-E x1 3.0, PCI-E x4 4.0, PCI-E x16 5.0

HDMI Output

Есть

Display Port

Есть
