Gigabyte Motherboard B860M DS3H WIFI6E s1851 B860 4xDDR5 M.2 Wi-Fi BT HDMI DP mATX (B860M_DS3H_WIFI6E)

Name: Gigabyte Motherboard B860M DS3H WIFI6E s1851 B860 4xDDR5 M.2 Wi-Fi BT HDMI DP mATX (B860M_DS3H_WIFI6E)
Brand: Gigabyte
SKU: B860M_DS3H_WIFI6E
Price: 8.333.00 UAH
Availability: InStock

Brand: Gigabyte Product Code: B860M_DS3H_WIFI6E

All about product

Description

Specification

Reviews 0

Questions0

new

Gigabyte Motherboard B860M DS3H WIFI6E s1851 B860 4xDDR5 M.2 Wi-Fi BT HDMI DP mATX (B860M_DS3H_WIFI6E)

In Stock

8,333.00 ₴

Found cheaper?

Buy this product in 1 click:

Guarantee:36 мес.

Features:CPU fan header, system fan headers, clear CMOS jumper, iTE I/O Controller Chip, Front panel audio connector, RGB LED strip header, Support for Windows 10 64-bit, Q-Flash Plus button, Smart Backup function, Q-Flash utility, Front Panel Header, TPM Header, Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control, system fan/water cooling pump header, Утиліта Q-Flash Plus, Water cooling flow rate detection, Support for Windows 11 64-bit

Towards:gaming (overclocking)

Form Factor:micro-ATX

Connection type:LGA 1851

Delivery

Nova Poshta by courier around the city

according to the carrier's tariffs

Nova Poshta at the branch and post office

according to the carrier's tariffs

Payment

ApplePay

payment on account

in cash

Gigabyte Motherboard B860M DS3H WIFI6E s1851 B860 4xDDR5 M.2 Wi-Fi BT HDMI DP mATX (B860M_DS3H_WIFI6E)

8,333.00 ₴

Description

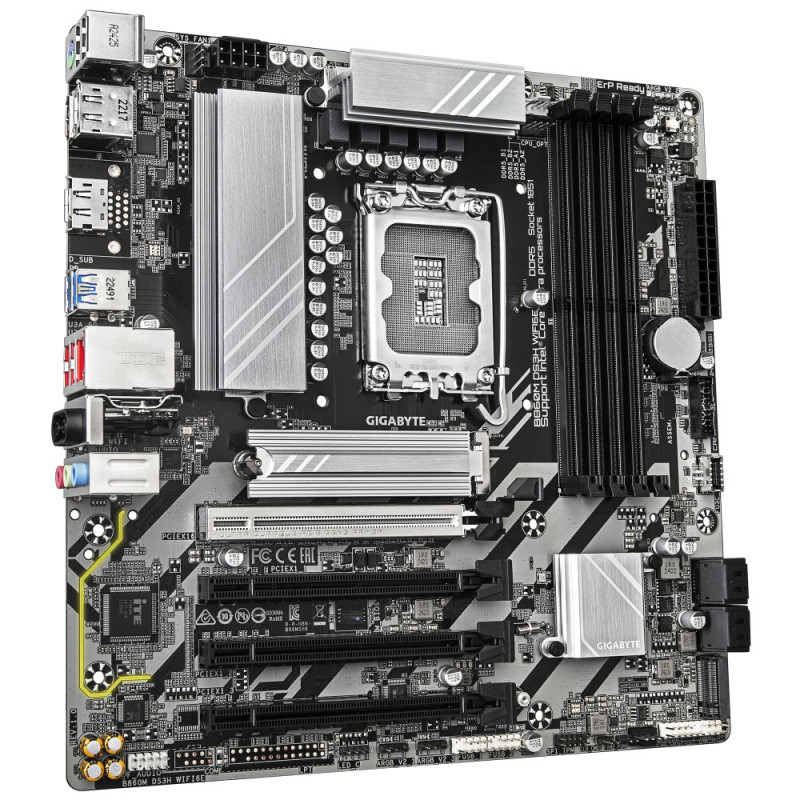

The GIGABYTE B860M DS3H WIFI6E is a microATX motherboard based on the Intel B860 chipset, compatible with Intel Core Ultra processors (LGA1851). It supports up to 256 GB of DDR5 RAM (up to 9066 MT/s OC), features HDMI 2.1, DisplayPort 2.1, dual M.2 slots (PCIe 5.0 & 4.0), and 4x SATA 6Gb/s.

Tags: Gigabyte, Motherboard, B860M, DS3H, WIFI6E, s1851, B860, 4xDDR5, M2, WiFi, BT, HDMI, DP, mATX, B860MDS3HWIFI6E

Specifications

Additional information

Features

CPU fan header, system fan headers, clear CMOS jumper, iTE I/O Controller Chip, Front panel audio connector, RGB LED strip header, Support for Windows 10 64-bit, Q-Flash Plus button, Smart Backup function, Q-Flash utility, Front Panel Header, TPM Header, Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control, system fan/water cooling pump header, Утиліта Q-Flash Plus, Water cooling flow rate detection, Support for Windows 11 64-bit

Audio settings

Аudiochip

Realtek®

Sound

7.1, 5.1, 2, 4

Chipset

Northbridge (chipset)

Intel B860

UEFI BIOS

Есть

BIOS

UEFI

Connecting drives

Connection interface

SATA 3, M.2

SATA3 (6 Gb / s)

4 ports

Support software RAID

Есть 0/1/5/10

Connection connectors

USB 2.0, pcs

7 (Chipset: 3 на задній панелі; Chipset+USB 2.0 Hub: 4 доступні через внутрішній USB роз'єм)

USB 3.2 Gen 1

USB 3.2 Gen 2

M.2 connector

PS/2, pcs

1 (клавіатура/миша)

CPU

Connection type

LGA 1851

For processors

Intel

Guarantee

36 мес.

Main

Towards

gaming (overclocking)

Form Factor

micro-ATX

Network interfaces

LAN (RJ-45)

100/1000/2500 Mbps

Number of LAN-ports

Wi-Fi

Есть (6E AX211 (PCB rev. 1.0); 6E RTL8852CE (PCB rev. 1.1))

Bluetooth

Есть

LAN-Controller Model

Realtek 2.5GbE

Physical

Dimensions (HxW)

244 x 244

Main power connector

24+8 -pin

RAM

Connector type

DDR5

Maximum operating frequency, MHz

9066

The maximum amount of memory, GB

256

DDR5

4 slots

Video settings

Graphical interface

PCI-E x1 4.0, PCI-E x16 5.0

HDMI Output

Есть

Display Port

Есть
