Gigabyte Motherboard B860M D3HP sAM5 B860 4xDDR5 M.2 HDMI DP mATX (B860M_D3HP)

Name: Gigabyte Motherboard B860M D3HP sAM5 B860 4xDDR5 M.2 HDMI DP mATX (B860M_D3HP)
Brand: Gigabyte
SKU: B860M_D3HP
Price: 6699.00 UAH
Availability: InStock

Brand: Gigabyte Product Code: B860M_D3HP

All about product

Description

Specification

Reviews 0

Questions0

new

ХІТ

ends

Gigabyte Motherboard B860M D3HP sAM5 B860 4xDDR5 M.2 HDMI DP mATX (B860M_D3HP)

In Stock

6699.00 ₴

Found cheaper?

Buy this product in 1 click:

Guarantee:36 мес.

Features:CPU fan header, system fan headers, clear CMOS jumper, serial port header, iTE I/O Controller Chip, Support for Windows 10 64-bit, Smart Backup function, Q-Flash utility, TPM Header, Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control, Water cooling flow rate detection, Support for Windows 11 64-bit, Internet Security, LAN bandwidth management software

Towards:gaming (overclocking)

Form Factor:micro-ATX

Connection type:LGA 1851

Delivery

Nova Poshta by courier around the city

according to the carrier's tariffs

Nova Poshta at the branch and post office

according to the carrier's tariffs

Payment

ApplePay

payment on account

in cash

Gigabyte Motherboard B860M D3HP sAM5 B860 4xDDR5 M.2 HDMI DP mATX (B860M_D3HP)

6699.00 ₴

Description

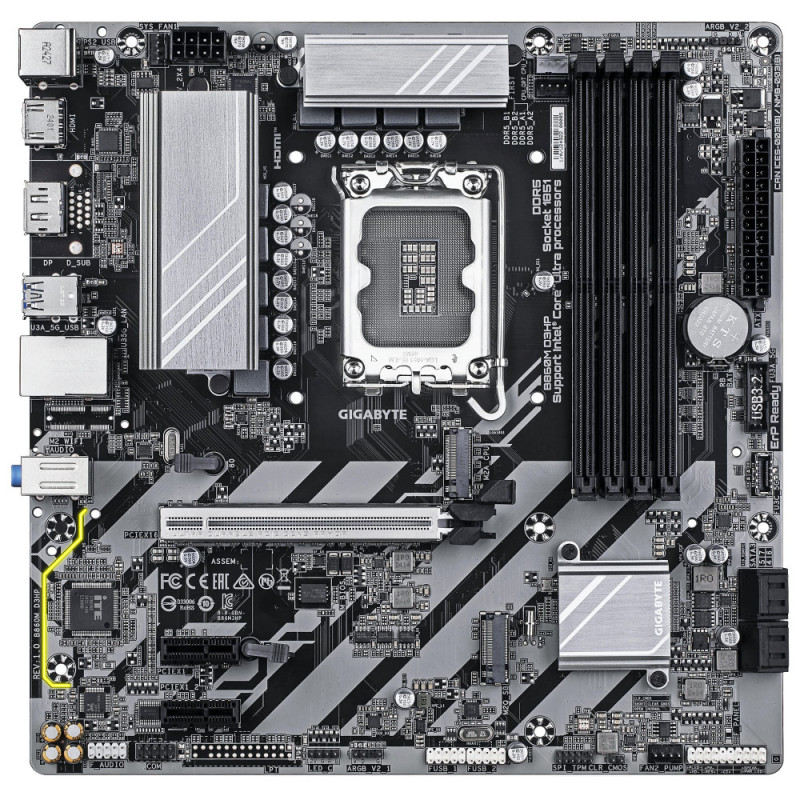

GIGABYTE B860M D3HP is a reliable mATX motherboard powered by the Intel B860 chipset and LGA1851 socket, supporting Intel Core Ultra processors. It features 4x DDR5 slots (up to 256GB), PCIe 5.0 x16, dual PCIe 4.0 M.2 slots, and 4x SATA ports. Includes HDMI 2.1, DisplayPort 2.1, 1Gb LAN, USB-C, RGB headers, and GIGABYTE Control Center support.

Tags: Gigabyte, Motherboard, B860M, D3HP, sAM5, B860, 4xDDR5, M2, HDMI, DP, mATX, B860MD3HP

Specifications

Additional information

Features

CPU fan header, system fan headers, clear CMOS jumper, serial port header, iTE I/O Controller Chip, Support for Windows 10 64-bit, Smart Backup function, Q-Flash utility, TPM Header, Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control, Water cooling flow rate detection, Support for Windows 11 64-bit, Internet Security, LAN bandwidth management software

Audio settings

Аudiochip

Realtek®

Sound

7.1, 5.1, 2, 4

Chipset

Northbridge (chipset)

Intel B860

UEFI BIOS

Есть

BIOS

UEFI

Connecting drives

Connection interface

SATA 3, M.2

SATA3 (6 Gb / s)

4 ports

Support software RAID

Есть 0/1/5/10

Connection connectors

USB 2.0, pcs

7 (Chipset: 3 на задній панелі; Chipset+USB 2.0 Hub: 4 доступні через внутрішні USB роз'єми)

USB 3.2 Gen 1

6 (Chipset: 1xType-C, доступний через внутрішній USB роз'єм; 3 на задній панелі, 2 доступні через внутрішній USB роз'єм)

M.2 connector

PS/2, pcs

1 (клавіатура/миша)

CPU

Connection type

LGA 1851

For processors

Intel

Guarantee

36 мес.

Main

Towards

gaming (overclocking)

Form Factor

micro-ATX

Network interfaces

LAN (RJ-45)

10/100/1000 Mbps

Number of LAN-ports

LAN-Controller Model

Realtek®

Physical

Dimensions (HxW)

244 x 244

Main power connector

24+8 -pin

RAM

Connector type

DDR5

Maximum operating frequency, MHz

9066

The maximum amount of memory, GB

256

DDR5

4 slots

Video settings

Graphical interface

PCI-E x1 3.0, PCI-E x16 5.0

HDMI Output

Есть

Display Port

Есть
