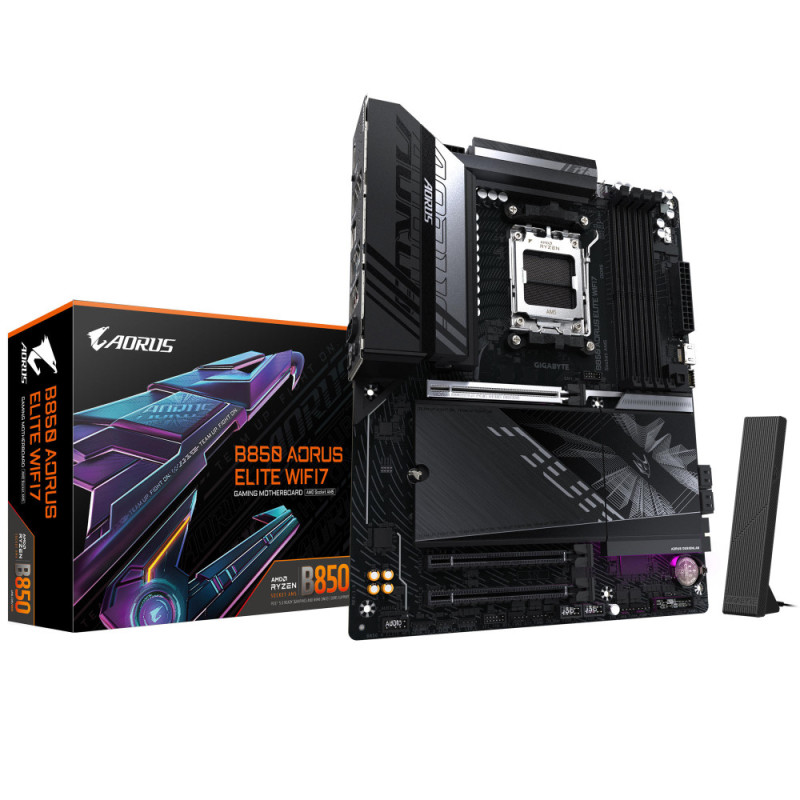

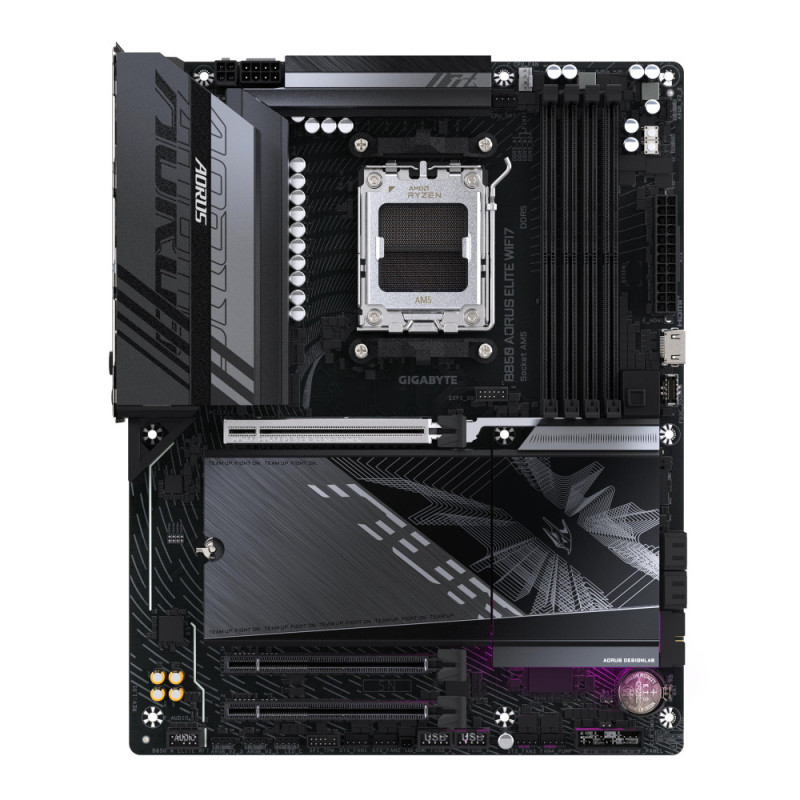

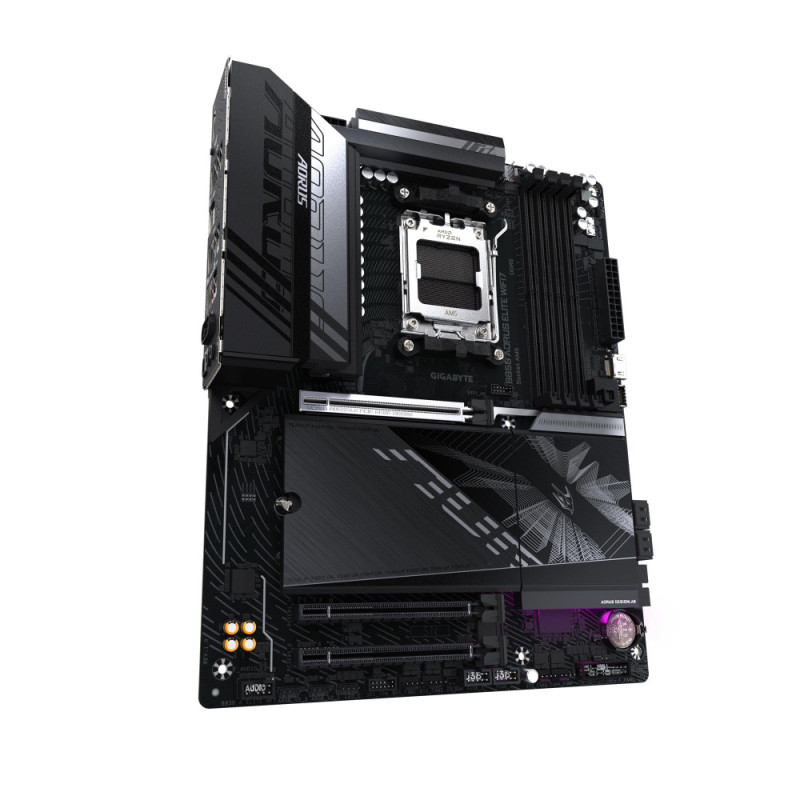

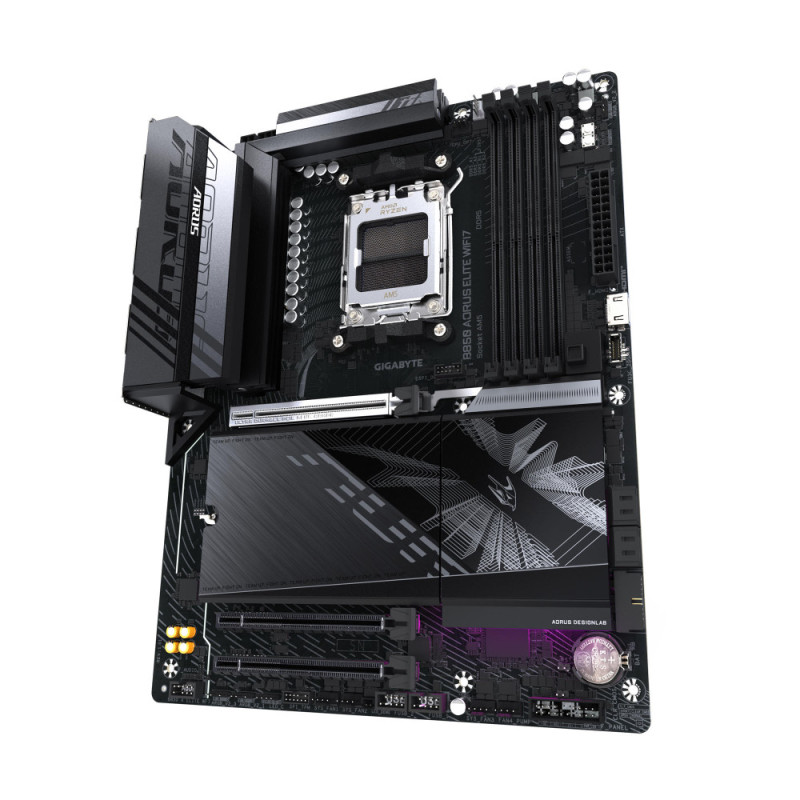

Gigabyte Motherboard B850 A ELITE WF7 sAM5 B850 4xDDR5 M.2 Wi-Fi BT ATX (B850_A_ELITE_WF7)

Brand: Gigabyte Product Code: B850_A_ELITE_WF7
0
All about product
Description
Specification
Reviews 0
Questions0
Out Of Stock
10999.00 ₴
Guarantee:36 мес.
Features:CPU fan header, clear CMOS jumper, iTE I/O Controller Chip, reset button, Support for Windows 10 64-bit, Smart Backup function, Q-Flash utility, Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control, Утиліта Q-Flash Plus, Water cooling flow rate detection, Support for Windows 11 64-bit
Towards:gaming (overclocking)
Form Factor:ATX
Connection type:AM5
Delivery
Nova Poshta by courier around the city Nova Poshta by courier around the city
according to the carrier's tariffs
Nova Poshta at the branch and post office Nova Poshta at the branch and post office
according to the carrier's tariffs
Payment
ApplePay ApplePay
payment on account payment on account
in cash in cash
Gigabyte Motherboard B850 A ELITE WF7 sAM5 B850 4xDDR5 M.2 Wi-Fi BT ATX (B850_A_ELITE_WF7)
10999.00 ₴
Description
The GIGABYTE B850 A ELITE WF7 motherboard supports AMD Ryzen 7000, 8000, and 9000 series processors on the AM5 socket, features the AMD B850 chipset, supports up to 256 GB of DDR5 memory with speeds up to 8200 MT/s (OC), includes integrated graphics with DisplayPort 1.4 and HDMI 1.4, Realtek audio codec for multi-channel sound, Realtek 2.5GbE LAN and Wi-Fi 6E with Bluetooth 5.3.

Tags: Gigabyte, Motherboard, B850, A, ELITE, WF7, sAM5, B850, 4xDDR5, M2, WiFi, BT, ATX, B850AELITEWF7

Specifications
Additional information
Features
CPU fan header, clear CMOS jumper, iTE I/O Controller Chip, reset button, Support for Windows 10 64-bit, Smart Backup function, Q-Flash utility, Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control, Утиліта Q-Flash Plus, Water cooling flow rate detection, Support for Windows 11 64-bit
Audio settings
Аudiochip
Realtek ALC1220
Sound
7.1, 5.1, 2, 4
S/P-DIF
Есть
Chipset
Northbridge (chipset)
AMD B850
UEFI BIOS
Есть
BIOS
UEFI
Connecting drives
Connection interface
SATA 3, M.2
SATA3 (6 Gb / s)
4 ports
Support software RAID
Есть

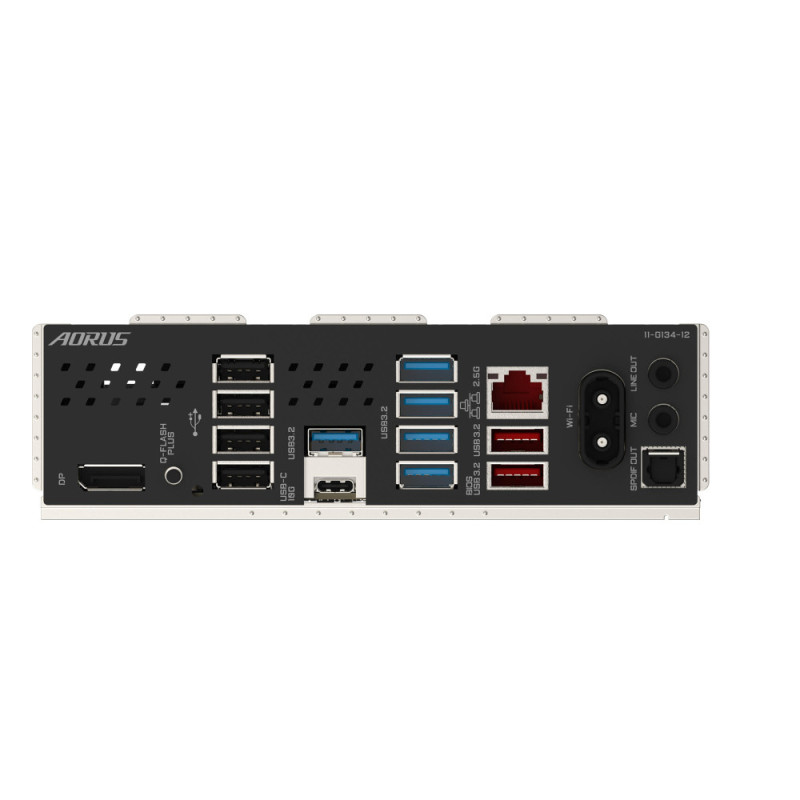

Connection connectors
USB 2.0, pcs
8 (CPU+USB 2.0 Hub: 4 x 2.0/1.1 на задній панелі, Chipset: 4 x 2.0/1 доступні через внутрішній USB роз'єм)
USB 3.2 Gen 1
7 (Chipset+USB 3.2 Gen 1 Hub: 4 на задній панелі, Chipset: 1 на задній панелі, 2 доступні через внутрішній USB роз'єм)
USB 3.2 Gen 2
3 (CPU: 1 x USB Type-C® на задній панелі з підтримкою USB 3.2 Gen 2; 2 x Type-A (червоні) на задній панелі)
M.2 connector
2
CPU
Connection type
AM5
For processors
AMD
Guarantee
Guarantee
36 мес.
Main
Towards
gaming (overclocking)
Form Factor
ATX
Network interfaces
LAN (RJ-45)
2.5 Gbps
Number of LAN-ports
1
Wi-Fi
Есть 6E RTL8852CE
Bluetooth
Есть 5.3
LAN-Controller Model
Realtek®
Physical
Dimensions (HxW)
244 x 244
Main power connector
24+8 -pin
RAM
Connector type
DDR5
Maximum operating frequency, MHz
8200
Support for XMP
Есть
DDR5
4 slots
Video settings
Graphical interface
PCI-E x16 5.0
HDMI Output
Есть
Display Port
Есть
