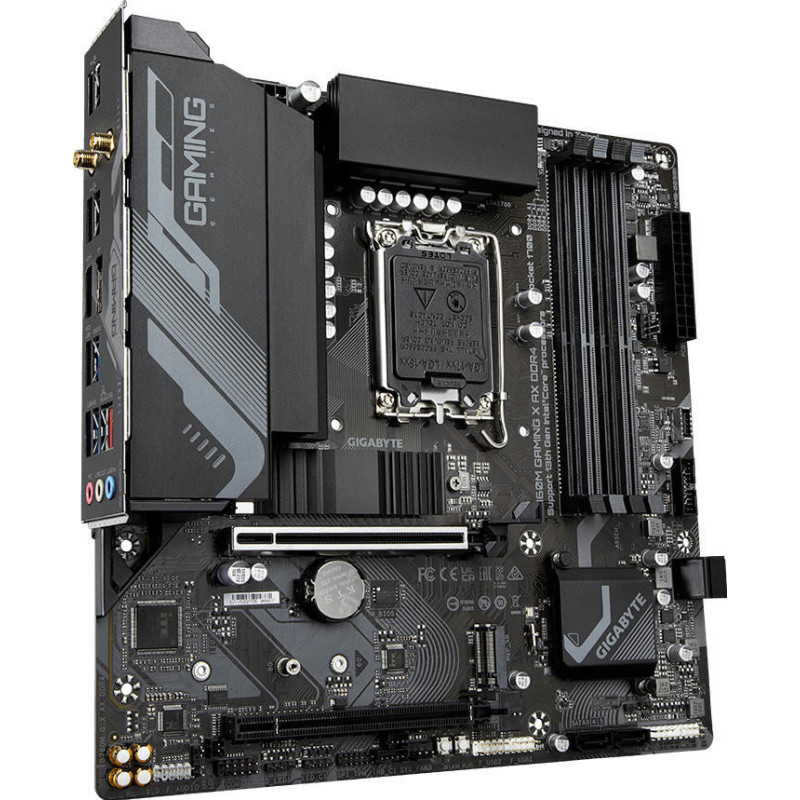

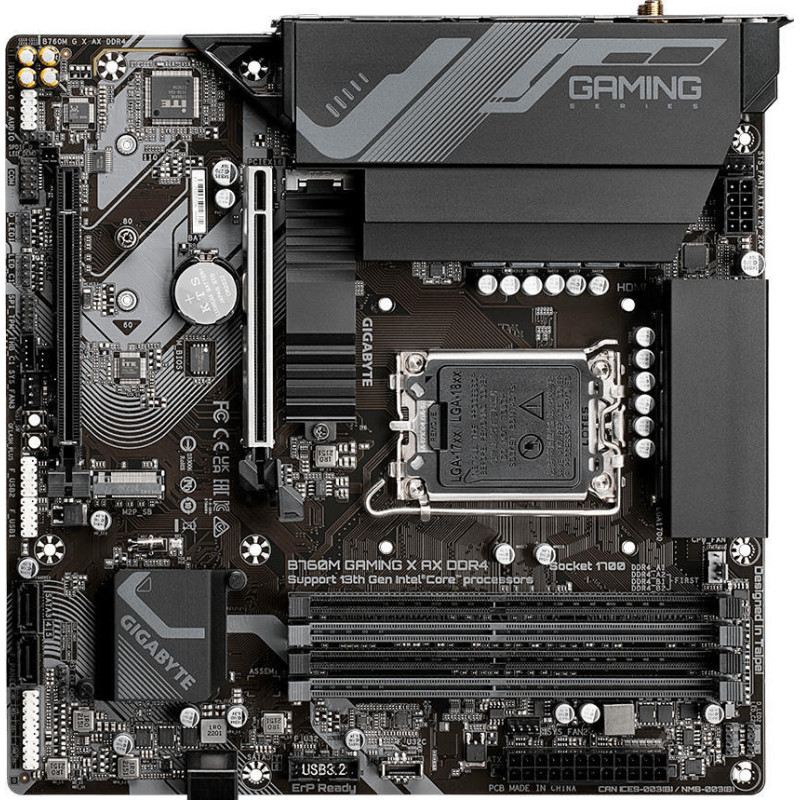

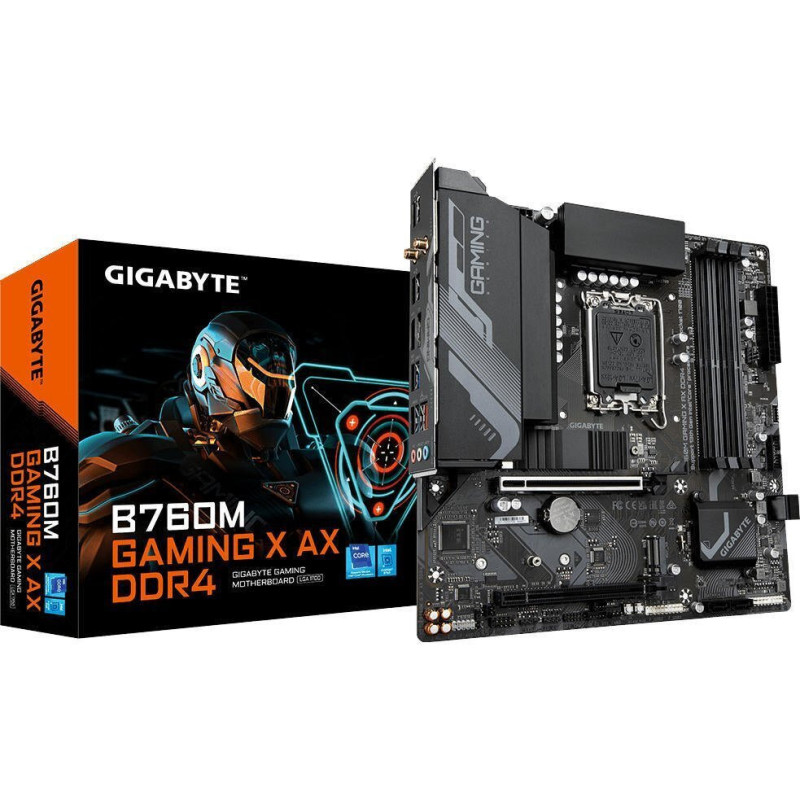

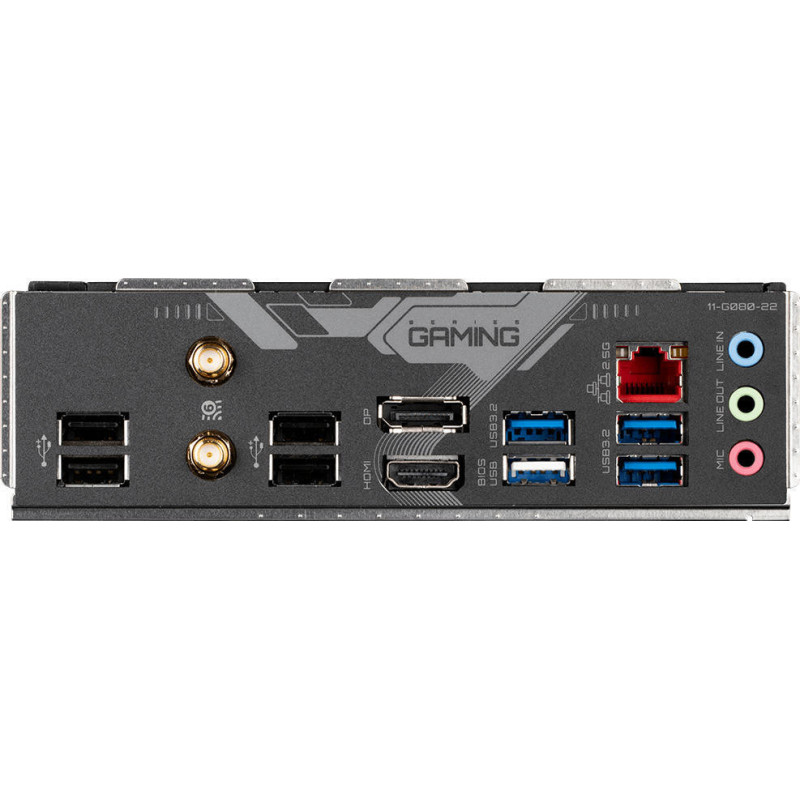

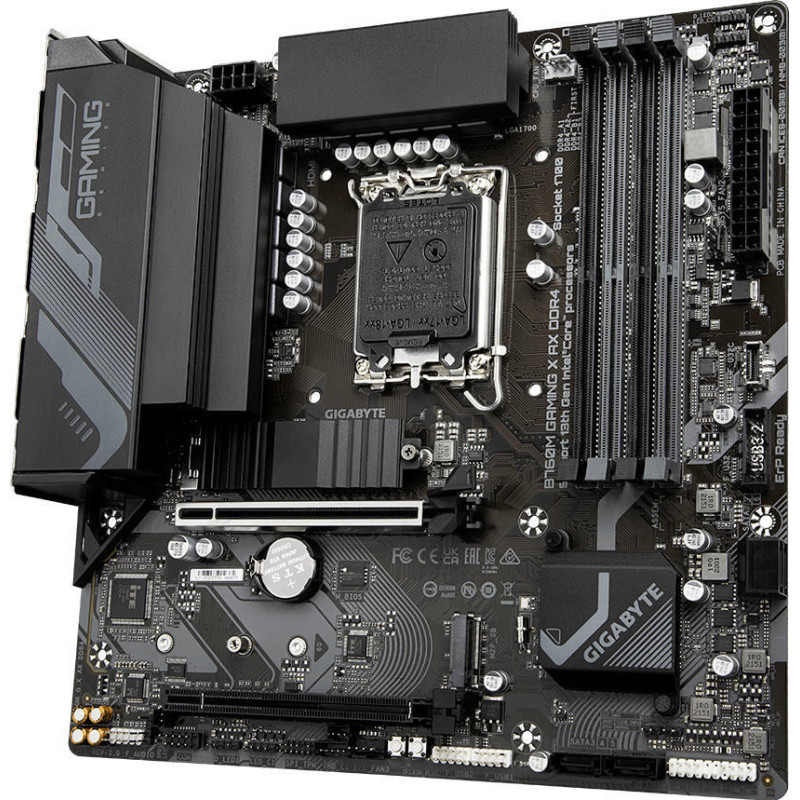

Gigabyte Motherbard B760M G X AX DDR4 s1700 B760M 4xDDR4 M.2 HDMI DP mATX (B760M_G_X_AX_DDR4)

Name: Gigabyte Motherbard B760M G X AX DDR4 s1700 B760M 4xDDR4 M.2 HDMI DP mATX (B760M_G_X_AX_DDR4)
Brand: Gigabyte
SKU: B760M_G_X_AX_DDR4
Price: 7.313.00 UAH
Availability: OutOfStock

Brand: Gigabyte Product Code: B760M_G_X_AX_DDR4

All about product

Description

Specification

Reviews 0

Questions0

new

ХІТ

Sold Out

Gigabyte Motherbard B760M G X AX DDR4 s1700 B760M 4xDDR4 M.2 HDMI DP mATX (B760M_G_X_AX_DDR4)

Out Of Stock

7,313.00 ₴

Guarantee:36 мес.

Features:CPU fan header, system fan headers, clear CMOS jumper, serial port header, iTE I/O Controller Chip, reset button, Front panel audio connector, RGB LED strip header, Support for Windows 10 64-bit, Q-Flash Plus button, Q-Flash utility, Front Panel Header, Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control, Утиліта Q-Flash Plus, Water cooling flow rate detection, Support for Windows 11 64-bit

Towards:gaming (overclocking)

Form Factor:micro-ATX

Connection type:LGA1700

Delivery

Nova Poshta by courier around the city

according to the carrier's tariffs

Nova Poshta at the branch and post office

according to the carrier's tariffs

Payment

ApplePay

payment on account

in cash

Gigabyte Motherbard B760M G X AX DDR4 s1700 B760M 4xDDR4 M.2 HDMI DP mATX (B760M_G_X_AX_DDR4)

7,313.00 ₴

Description

The B760M G X AX is a high-performance motherboard designed for advanced computing. Powered by the B760M chipset and supporting s1700 DDR4 memory, it provides a robust foundation for optimal performance. With four DDR4 DIMM slots, the motherboard supports efficient multitasking and system responsiveness.

Tags: Gigabyte, Motherbard, B760M, G, X, AX, DDR4, s1700, B760M, 4xDDR4, M2, HDMI, DP, mATX, B760MGXAXDDR4

Specifications

Additional information

Features

CPU fan header, system fan headers, clear CMOS jumper, serial port header, iTE I/O Controller Chip, reset button, Front panel audio connector, RGB LED strip header, Support for Windows 10 64-bit, Q-Flash Plus button, Q-Flash utility, Front Panel Header, Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control, Утиліта Q-Flash Plus, Water cooling flow rate detection, Support for Windows 11 64-bit

Audio settings

Sound

7.1

Chipset

Northbridge (chipset)

Intel B760

UEFI BIOS

Есть

BIOS

UEFI

Connecting drives

Connection interface

SATA 3, M.2

SATA3 (6 Gb / s)

4 ports

Support software RAID

Есть 1/1/5/10

Connection connectors

USB 2.0, pcs

8 (чіпсет + 2 концентратори USB 2.0: 4 порти на задній панелі, 4 порти доступні через внутрішні USB-роз'єми, чіпсет: 1 x порт USB 2.0/1.1 на задній панелі)

USB 3.2 Gen 1

5 (3 порти на задній панелі, 2 порти доступні через внутрішній USB-роз'єм)

USB 3.2 Type-C, pcs

1 (з підтримкою USB 3.2 Gen 2, доступний через внутрішній USB-роз'єм)

CPU

Connection type

LGA1700

For processors

Intel

Processor compatibility

Intel Core 13th Generation, Intel Core 12th Generation

Guarantee

36 мес.

Main

Towards

gaming (overclocking)

Form Factor

micro-ATX

Network interfaces

LAN (RJ-45)

100/1000/2500 Mbps

Number of LAN-ports

Wi-Fi

Есть 6E

Bluetooth

Есть 5.3

Physical

Dimensions (HxW)

244x244

Main power connector

24+8 -pin

RAM

Connector type

DDR4

4 slots

Maximum operating frequency, MHz

5333

The maximum amount of memory, GB

128

Support for XMP

Есть

Video settings

Graphical interface

PCI-E x16 4.0, PCI-E x4 3.0

HDMI Output

Есть

Display Port

Есть
