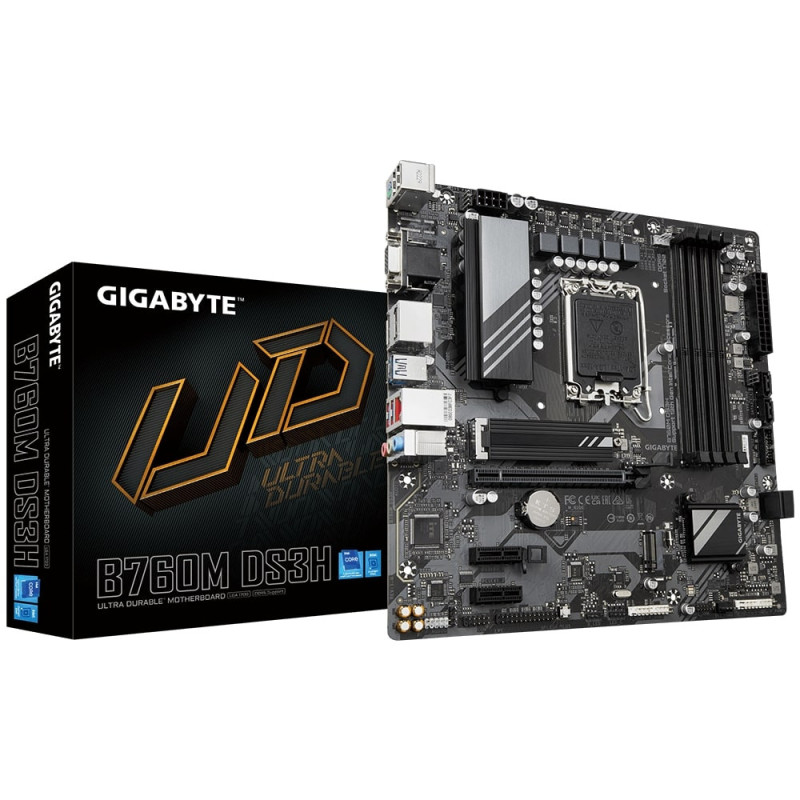

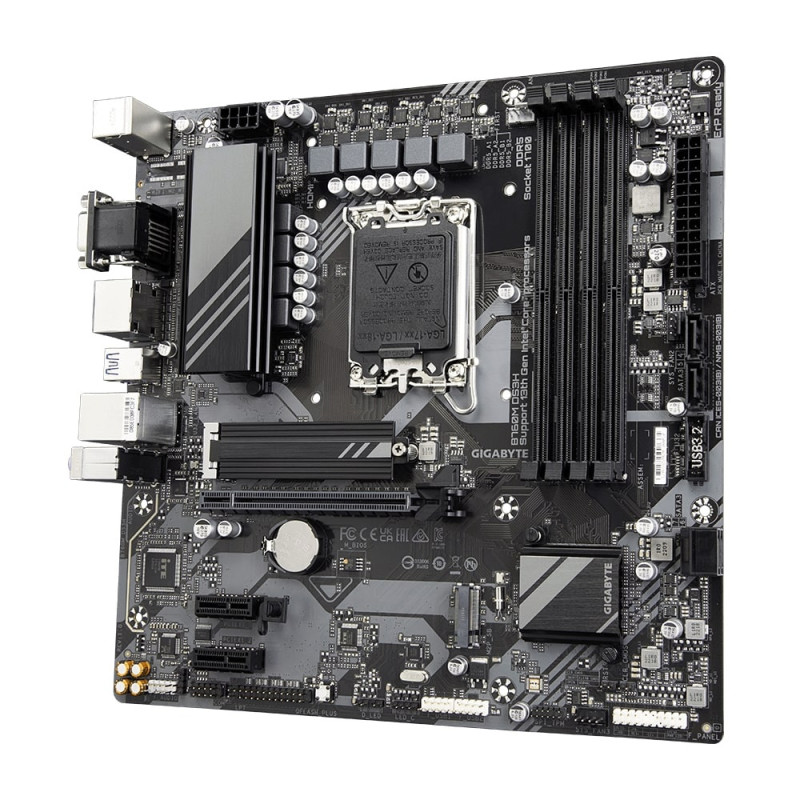

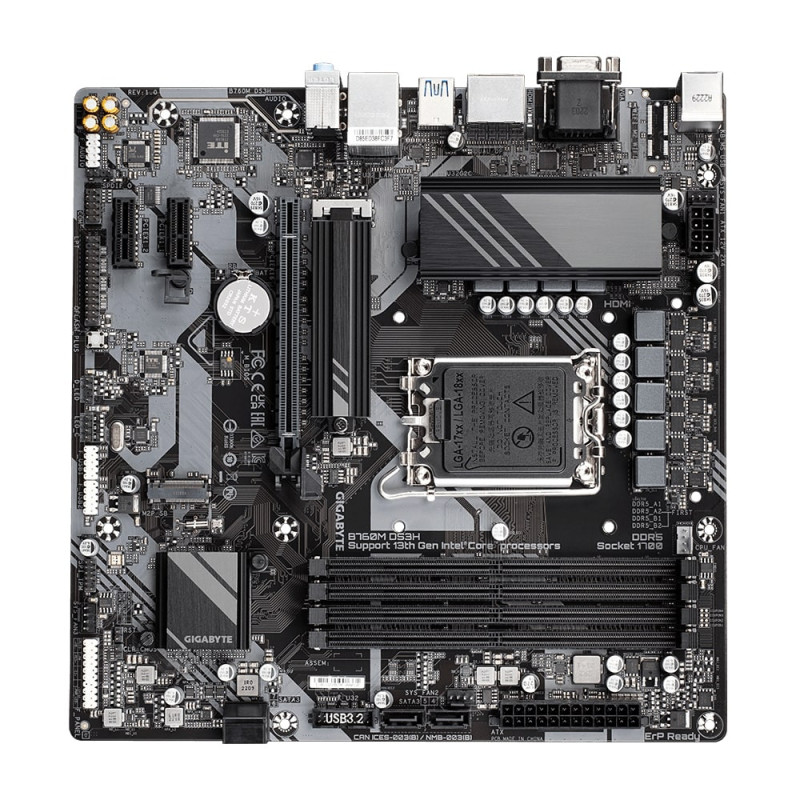

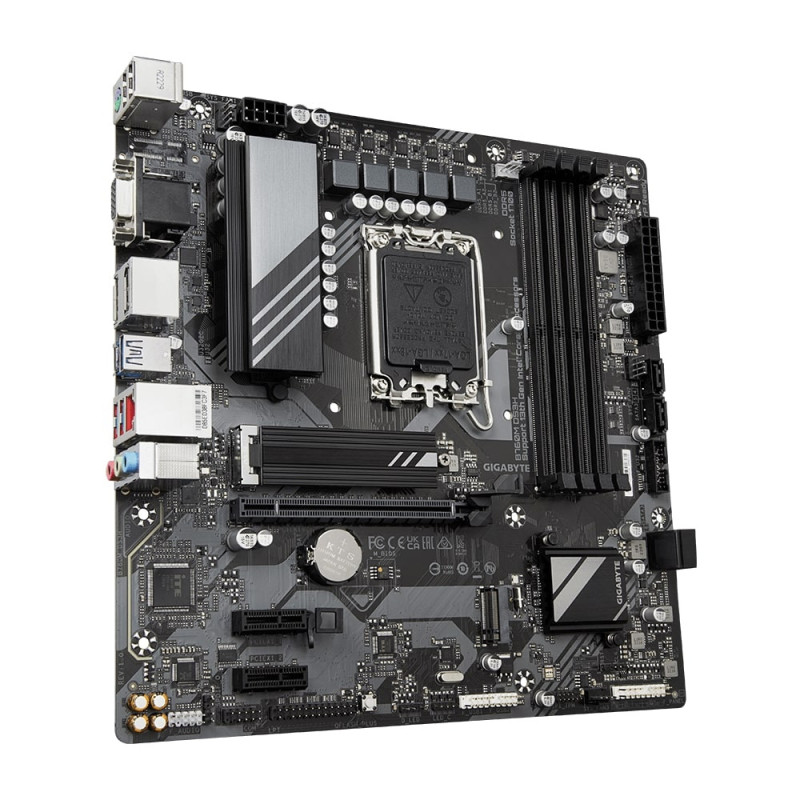

Gigabyte Motherbard B760M DS3H s1700 B760M 4xDDR5 M.2 HDMI DP mATX (B760M_DS3H)

Name: Gigabyte Motherbard B760M DS3H s1700 B760M 4xDDR5 M.2 HDMI DP mATX (B760M_DS3H)
Brand: Gigabyte
SKU: B760M_DS3H
Price: 5.299.00 UAH
Availability: OutOfStock

Brand: Gigabyte Product Code: B760M_DS3H

All about product

Description

Specification

Reviews 0

Questions0

new

ХІТ

Sold Out

Gigabyte Motherbard B760M DS3H s1700 B760M 4xDDR5 M.2 HDMI DP mATX (B760M_DS3H)

Out Of Stock

5,299.00 ₴

Guarantee:36 мес.

Features:S/PDIF out header, CPU fan header, system fan headers, clear CMOS jumper, parallel port connector, serial port header, iTE I/O Controller Chip, RGB LED strip header, Support for Windows 10 64-bit, Q-Flash Plus button, Q-Flash utility, Front Panel Header, Serial port connector, Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control, Утиліта Q-Flash Plus, Water cooling flow rate detection, Support for Windows 11 64-bit

Towards:gaming (overclocking)

Form Factor:micro-ATX

Connection type:LGA1700

Delivery

Nova Poshta by courier around the city

according to the carrier's tariffs

Nova Poshta at the branch and post office

according to the carrier's tariffs

Payment

ApplePay

payment on account

in cash

Gigabyte Motherbard B760M DS3H s1700 B760M 4xDDR5 M.2 HDMI DP mATX (B760M_DS3H)

5,299.00 ₴

Description

The B760M DS3H is a high-performance motherboard designed for cutting-edge computing. Powered by the B760M chipset and supporting s1700 DDR5 memory, it provides a robust foundation for optimal performance.

Tags: Gigabyte, Motherbard, B760M, DS3H, s1700, B760M, 4xDDR5, M2, HDMI, DP, mATX, B760MDS3H

Specifications

Additional information

Features

S/PDIF out header, CPU fan header, system fan headers, clear CMOS jumper, parallel port connector, serial port header, iTE I/O Controller Chip, RGB LED strip header, Support for Windows 10 64-bit, Q-Flash Plus button, Q-Flash utility, Front Panel Header, Serial port connector, Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control, Утиліта Q-Flash Plus, Water cooling flow rate detection, Support for Windows 11 64-bit

Audio settings

Аudiochip

Realtek®

Sound

7.1

S/P-DIF

Есть

Chipset

Northbridge (chipset)

Intel B760

UEFI BIOS

Есть

BIOS

UEFI

Connecting drives

Connection interface

SATA 3, M.2

SATA3 (6 Gb / s)

4 ports

Support software RAID

Есть 0/1/5/10

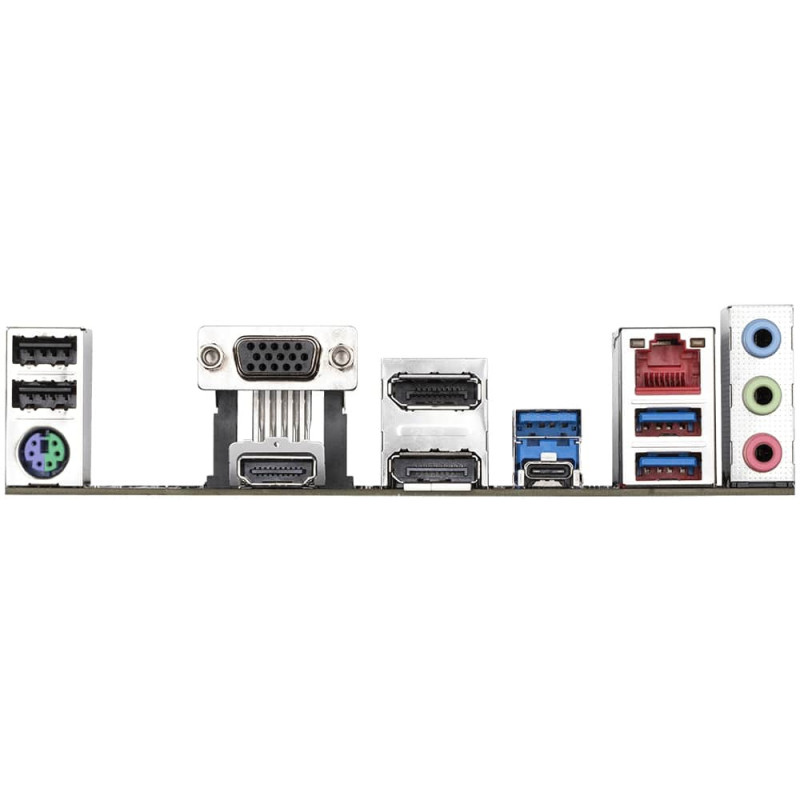

Connection connectors

USB 2.0, pcs

6 (чіпсет: 2 на задній панелі, чіпсет+2 USB 2.0 концентратори: 4 x USB 2.0/1.1, доступні через внутрішні USB-роз'єми)

USB 3.2 Gen 1

5 (чіпсет: 3 порти на задній панелі, 2 порти доступні через внутрішній USB-роз'єм)

USB 3.2 Type-C, pcs

1 (на задній панелі, з підтримкою USB 3.2 Gen 2)

PS/2, pcs

1 (клавіатура/миша)

CPU

Connection type

LGA1700

For processors

Intel

Processor compatibility

Intel Core 13th Generation, Intel Core 12th Generation

Guarantee

36 мес.

Main

Towards

gaming (overclocking)

Form Factor

micro-ATX

Network interfaces

LAN (RJ-45)

100/1000/2500 Mbps

Physical

Dimensions (HxW)

244x244

Main power connector

24+8 -pin

RAM

Connector type

DDR5

Maximum operating frequency, MHz

7600

The maximum amount of memory, GB

192

Support for XMP

Есть

DDR5

4 slots

Video settings

Graphical interface

PCI-E x16 4.0, PCI-E x1 3.0

HDMI Output

Есть

Display Port

Есть

D-Sub (VGA)

Есть
