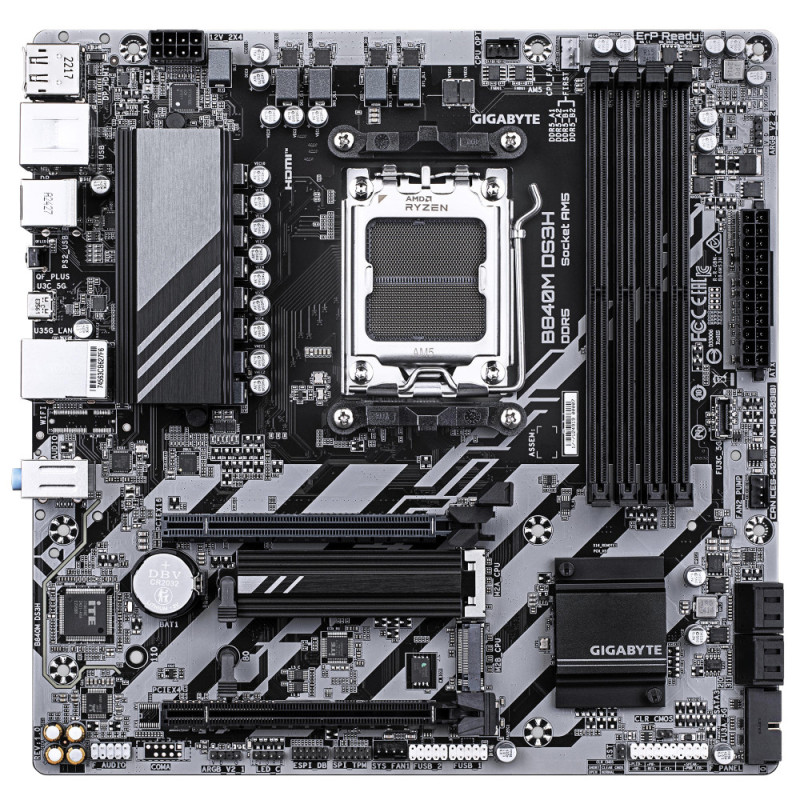

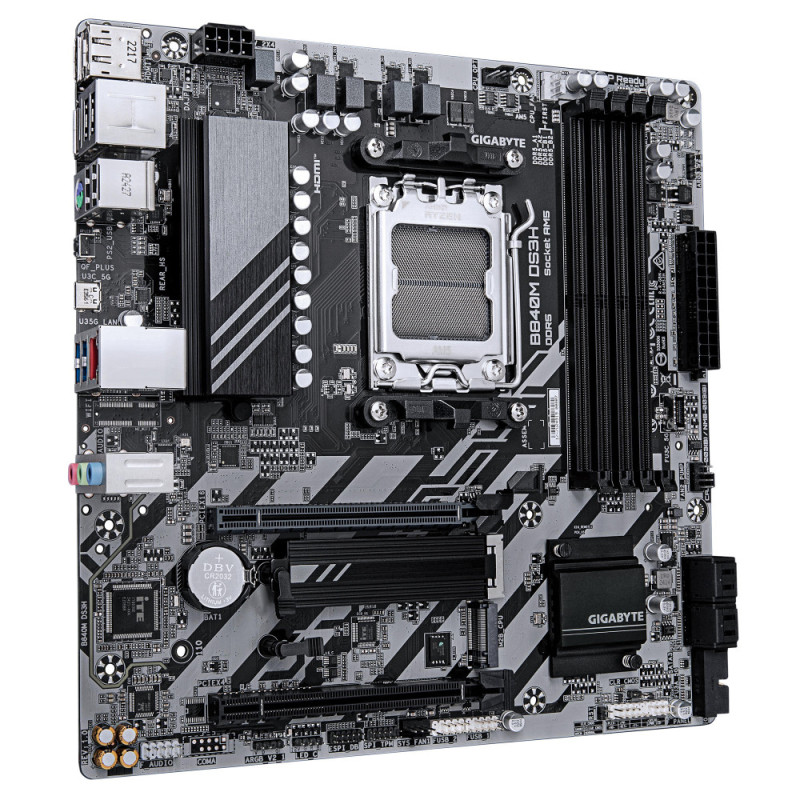

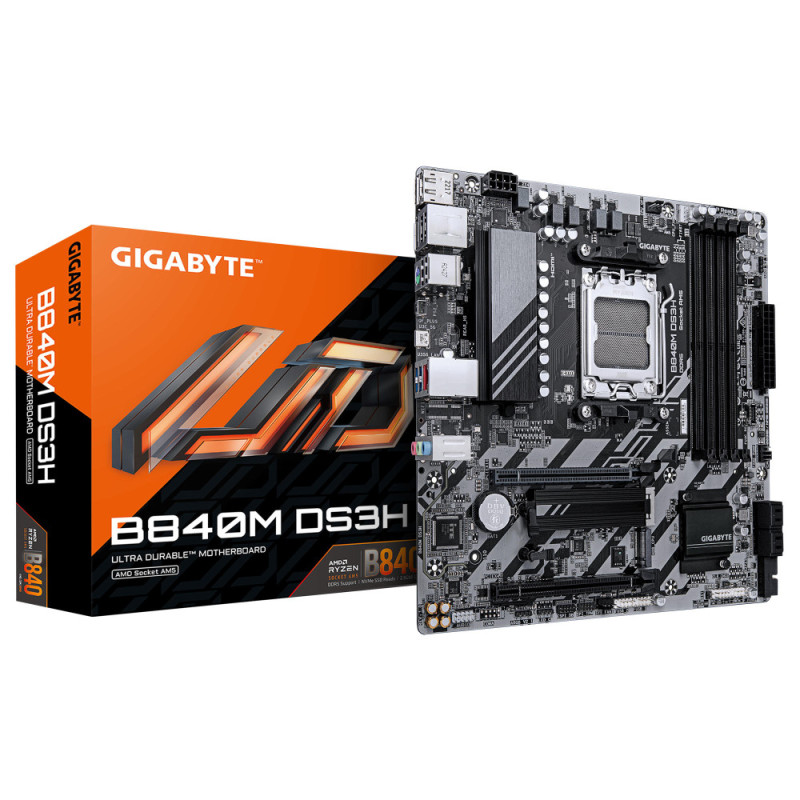

Gigabyte Материнська плата B840M DS3H sAM5 B840 4xDDR5 M.2 HDMI DP mATX (B840M_DS3H)

Name: Gigabyte Материнська плата B840M DS3H sAM5 B840 4xDDR5 M.2 HDMI DP mATX (B840M_DS3H)
Brand: Gigabyte
SKU: B840M_DS3H
Price: 6.100.00 UAH
Availability: OutOfStock

Brand: Gigabyte Product Code: B840M_DS3H

All about product

Description

Specification

Reviews 0

Questions0

new

Sold Out

Gigabyte Материнська плата B840M DS3H sAM5 B840 4xDDR5 M.2 HDMI DP mATX (B840M_DS3H)

Out Of Stock

6,100.00 ₴

Guarantee:36 мес.

Features:USB Type C, CPU fan header, system fan headers, clear CMOS jumper, iTE I/O Controller Chip, Support for Windows 10 64-bit, RGB LED Headers, Smart Backup function, Q-Flash utility, Front Panel Header, TPM Header, Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control, system fan/water cooling pump header, Утиліта Q-Flash Plus, Water cooling flow rate detection, Support for Windows 11 64-bit, Internet Security

Towards:gaming (overclocking)

Form Factor:micro-ATX

Connection type:AM5

Delivery

Nova Poshta by courier around the city

according to the carrier's tariffs

Nova Poshta at the branch and post office

according to the carrier's tariffs

Payment

ApplePay

payment on account

in cash

Gigabyte Материнська плата B840M DS3H sAM5 B840 4xDDR5 M.2 HDMI DP mATX (B840M_DS3H)

6,100.00 ₴

Description

The GIGABYTE B840M DS3H is a modern microATX motherboard built on the AMD B840 chipset with the AM5 socket. It supports AMD Ryzen 9000, 8000, and 7000 series processors, and up to 256GB of DDR5 memory. Featuring dual PCIe 4.0 M.2 slots, 2.5GbE LAN, USB Type-C, HDMI, and DisplayPort, it’s ideal for efficient and high-performance system builds.

Tags: Gigabyte, Материнська, плата, B840M, DS3H, sAM5, B840, 4xDDR5, M2, HDMI, DP, mATX, B840MDS3H

Specifications

Additional information

Features

USB Type C, CPU fan header, system fan headers, clear CMOS jumper, iTE I/O Controller Chip, Support for Windows 10 64-bit, RGB LED Headers, Smart Backup function, Q-Flash utility, Front Panel Header, TPM Header, Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control, system fan/water cooling pump header, Утиліта Q-Flash Plus, Water cooling flow rate detection, Support for Windows 11 64-bit, Internet Security

Audio settings

Аudiochip

Realtek®

Sound

7.1, 5.1, 2, 4

Chipset

Northbridge (chipset)

AMD B840

UEFI BIOS

Есть

BIOS

UEFI

Connecting drives

Connection interface

SATA 3, M.2

SATA3 (6 Gb / s)

4 ports

Support software RAID

Есть

Connection connectors

USB 2.0, pcs

8 (CPU: 4 на задній панелі; chipset: 4 доступні через внутрішній USB роз'єм)

USB 3.2 Gen 1

PS/2, pcs

1 (клавіатура/миша)

CPU

Connection type

AM5

For processors

AMD

Processor compatibility

AMD Ryzen 9000/8000/7000

Guarantee

36 мес.

Main

Towards

gaming (overclocking)

Form Factor

micro-ATX

Network interfaces

LAN (RJ-45)

100/1000/2500 Mbps

Number of LAN-ports

LAN-Controller Model

Realtek 2.5GbE

Physical

Dimensions (HxW)

244 x 244

RAM

Connector type

DDR5

Maximum operating frequency, MHz

8200

The maximum amount of memory, GB

256

DDR5

4 slots

Video settings

Graphical interface

PCI-E x16 4.0, PCI-E x4 4.0, PCI-E x8 4.0

HDMI Output

Есть

Display Port

Есть
