ASUS Motherboard TUF GAMING A620AM-PLUS sAM5 A620 4xDDR5 HDMI DP mATX (90MB1N30-M0EAY0)

Brand: ASUS Product Code: 90MB1N30-M0EAY0
0
All about product
Description
Specification
Reviews 0
Questions0
Out Of Stock
5,050.00 ₴
Guarantee:36 мес.
Features:S/PDIF out header, COM port connector, CPU fan header, Front panel audio connector, clear CMOS header, Support for Windows 10 64-bit, BIOS Flashback, Synchronization backlight Asus Aura Sync, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, ASUS TUF PROTECTION, COM port header, Digi+ VRM, Fan Xpert 2+, USB 2.0 Headers, Chassis Fan headers, ASUS DriverHub, Підтримка Windows 11

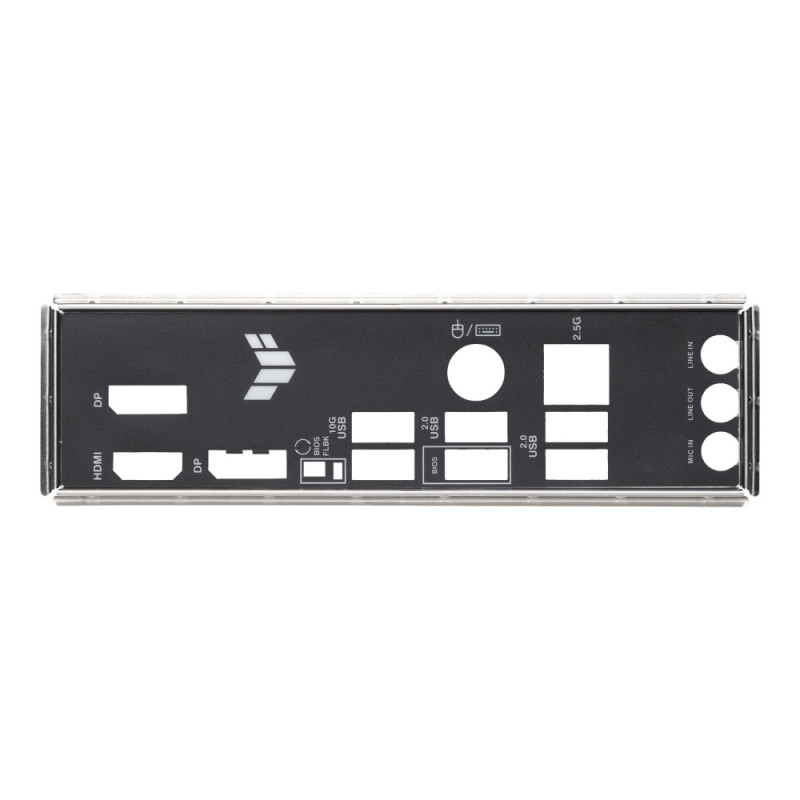

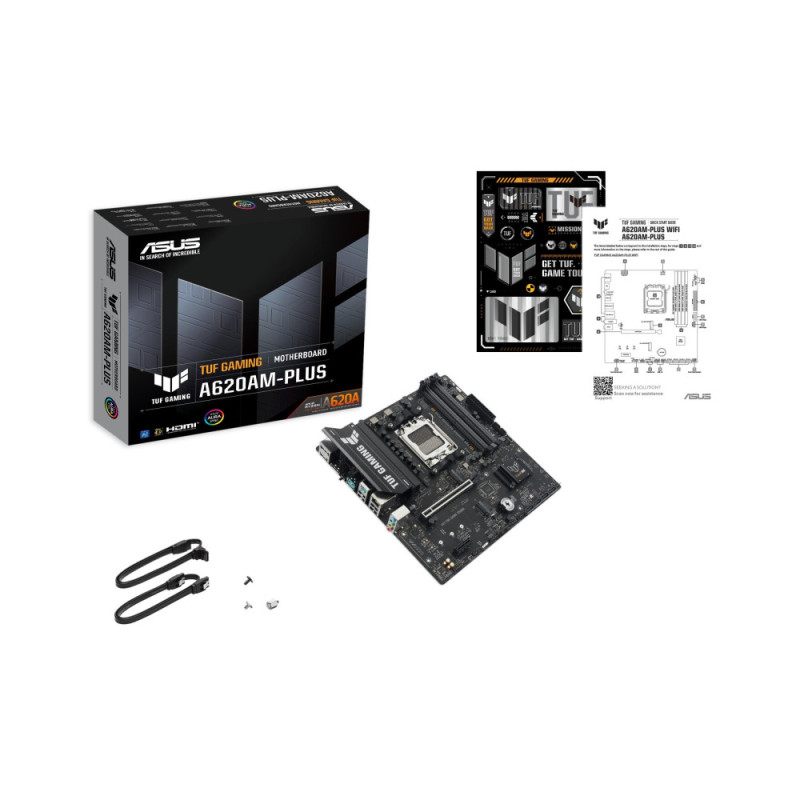

Package contents:SATA Cable, M.2 Screw Package, TUF GAMING Sticker, Quick start guide, I/O shield
Towards:gaming (overclocking)
Form Factor:micro-ATX
Delivery
Nova Poshta by courier around the city Nova Poshta by courier around the city
according to the carrier's tariffs
Nova Poshta at the branch and post office Nova Poshta at the branch and post office
according to the carrier's tariffs
Payment
ApplePay ApplePay
payment on account payment on account
in cash in cash
ASUS Motherboard TUF GAMING A620AM-PLUS sAM5 A620 4xDDR5 HDMI DP mATX (90MB1N30-M0EAY0)
5,050.00 ₴
Description

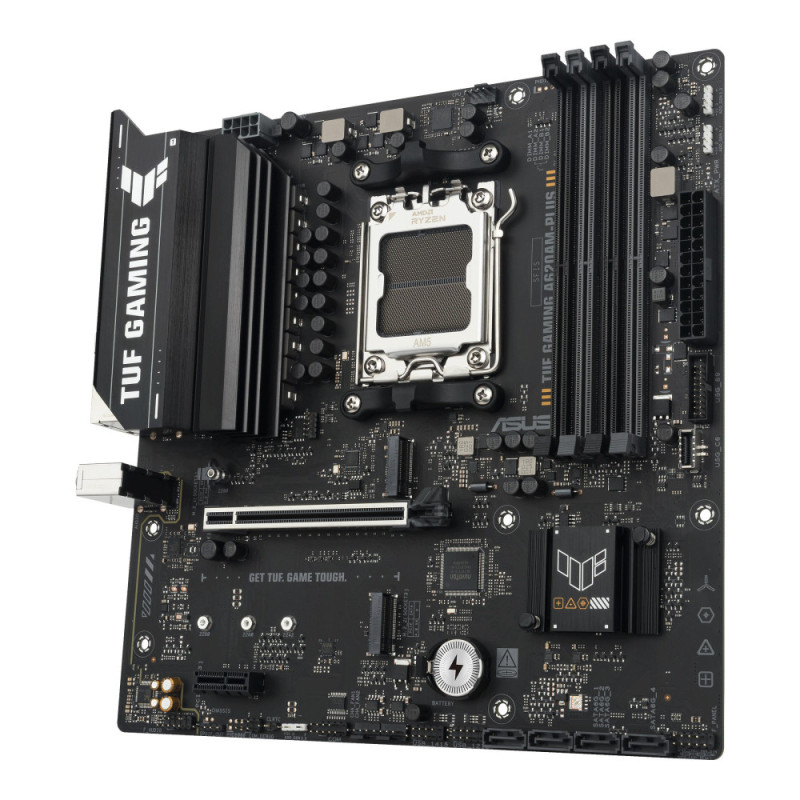

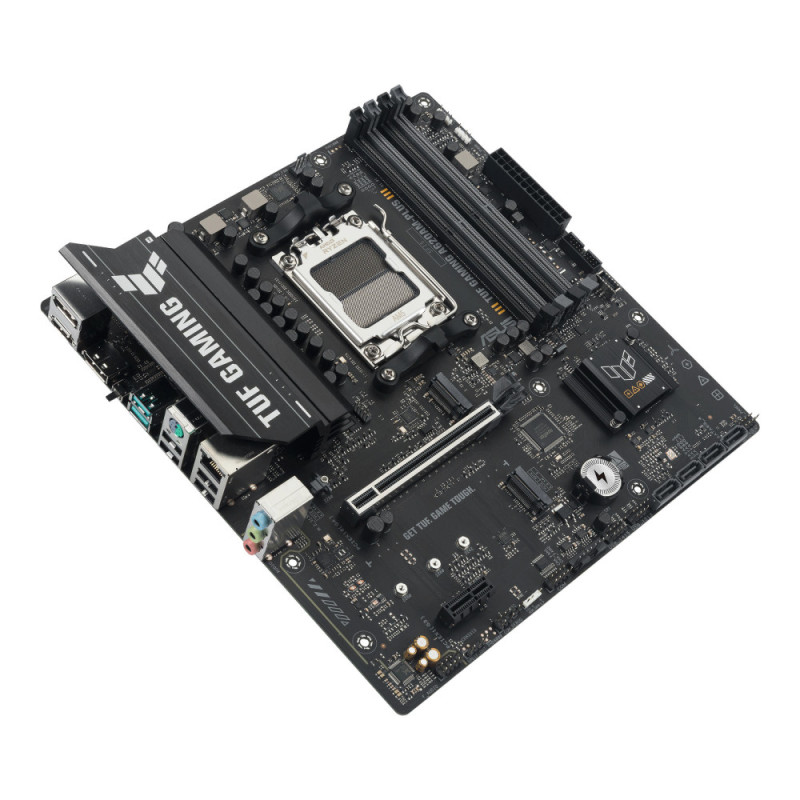

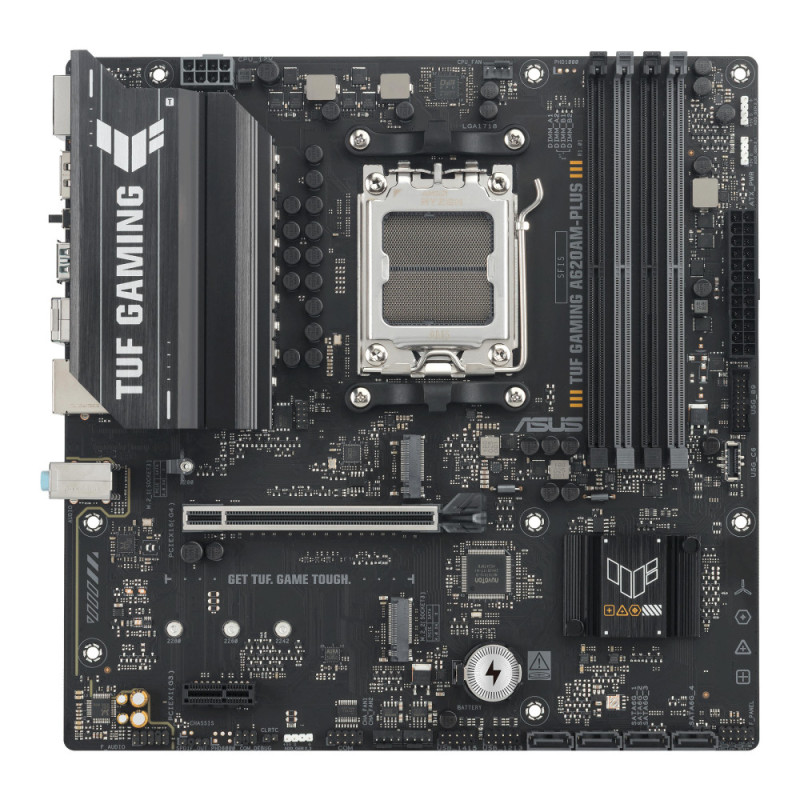

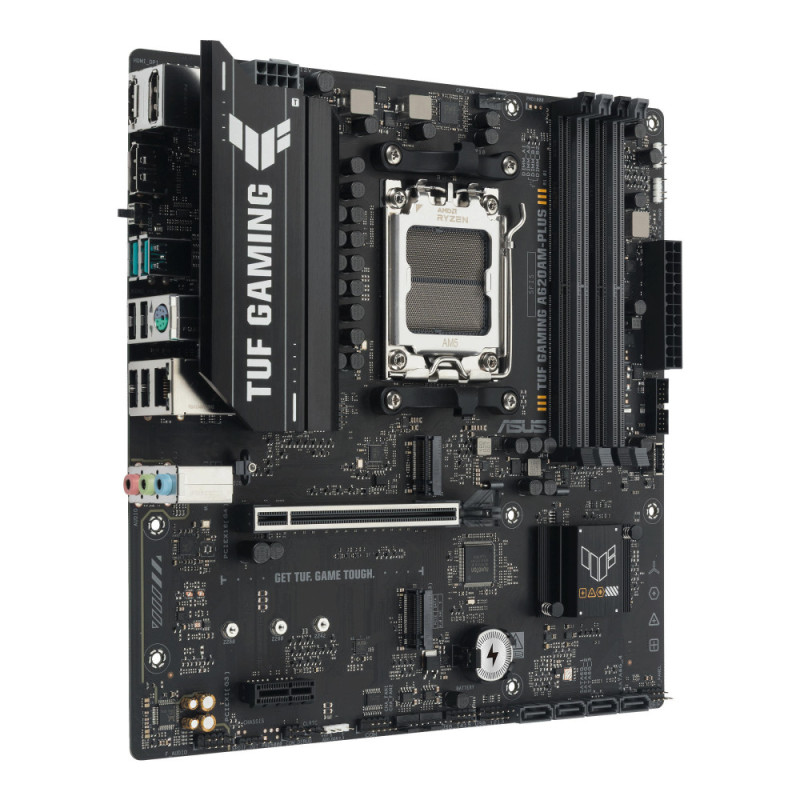

ASUS TUF GAMING A620AM-PLUS is a durable micro-ATX motherboard built for AMD Ryzen 9000/8000/7000 processors. It features an 8+2+1 power stage design, DDR5 support up to 256 GB, PCIe 4.0 connectivity, and dual M.2 slots for ultra-fast storage. With 2.5 Gb LAN, robust cooling, Aura Sync lighting, and TUF military-grade reliability, it delivers stable performance for gaming and long-term use.

Tags: ASUS, Motherboard, TUF, GAMING, A620AMPLUS, sAM5, A620, 4xDDR5, HDMI, DP, mATX, 90MB1N30M0EAY0

Specifications
Additional information
Features
S/PDIF out header, COM port connector, CPU fan header, Front panel audio connector, clear CMOS header, Support for Windows 10 64-bit, BIOS Flashback, Synchronization backlight Asus Aura Sync, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, ASUS TUF PROTECTION, COM port header, Digi+ VRM, Fan Xpert 2+, USB 2.0 Headers, Chassis Fan headers, ASUS DriverHub, Підтримка Windows 11
Package contents
SATA Cable, M.2 Screw Package, TUF GAMING Sticker, Quick start guide, I/O shield
Audio settings
Аudiochip
Realtek®
Sound
7.1
Chipset
Northbridge (chipset)
AMD A620A
UEFI BIOS
Есть
BIOS
UEFI
Connecting drives
Connection interface
SATA 3, M.2
SATA3 (6 Gb / s)
4 ports
Support software RAID
Есть
Connection connectors
USB, pcs
13 (6 задніх, 7 фронтальних)
USB 2.0, pcs
6 (4 задні Type-A, 2 фронтальні роз'єми з підтримкою 4 додаткових USB 2.0 портів)
USB 3.2 Gen 1
2 (1 фронтальний Type-C, 1 фронтальний роз'єм з підтримкою 2 додаткових USB портів)
USB 3.2 Gen 2
2 (задні Type-A)
M.2 connector
2
PS/2, pcs
1 (клавіатура/миша)
CPU
Connection type
AM5
For processors
AMD
Processor compatibility
AMD Ryzen 9000/8000/7000
Guarantee
Guarantee
36 мес.
Main
Towards
gaming (overclocking)
Form Factor
micro-ATX
Network interfaces
LAN (RJ-45)
2.5 Gbps
Number of LAN-ports
1
LAN-Controller Model
Realtek 2.5GbE
Physical
Dimensions (HxW)
24,4 x 24,4
RAM
Connector type
DDR5
Maximum operating frequency, MHz
7600
The maximum amount of memory, GB
256
DDR5
4 slots
Video settings
Graphical interface
PCI-E x16 4.0, PCI-E x1 3.0
HDMI Output
Есть
Display Port
Есть
