ASUS Motherboard PRIME B760M-A WIFI D4 s1700 B760 4xDDR4 M.2 HDMI DP Wi-Fi BT mATX (90MB1CX0-M1EAY0)

Name: ASUS Motherboard PRIME B760M-A WIFI D4 s1700 B760 4xDDR4 M.2 HDMI DP Wi-Fi BT mATX (90MB1CX0-M1EAY0)
Brand: ASUS
SKU: 90MB1CX0-M1EAY0
Price: 6299.00 UAH
Availability: InStock

Brand: ASUS Product Code: 90MB1CX0-M1EAY0

All about product

Description

Specification

Reviews 0

Questions0

new

ХІТ

ends

ASUS Motherboard PRIME B760M-A WIFI D4 s1700 B760 4xDDR4 M.2 HDMI DP Wi-Fi BT mATX (90MB1CX0-M1EAY0)

In Stock

6299.00 ₴

Found cheaper?

Buy this product in 1 click:

Guarantee:36 мес.

Features:S/PDIF out header, CPU OPT Fan connector, CPU fan header, Front panel audio connector, clear CMOS header, Synchronization backlight Asus Aura Sync, ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, ASUS Exclusive Software, ASUS EZ DIY, Addressable Gen 2 header, COM port header, AI Suite 3, Digi+ VRM, SPI TPM header, Fan Xpert 2+, Chassis Fan headers

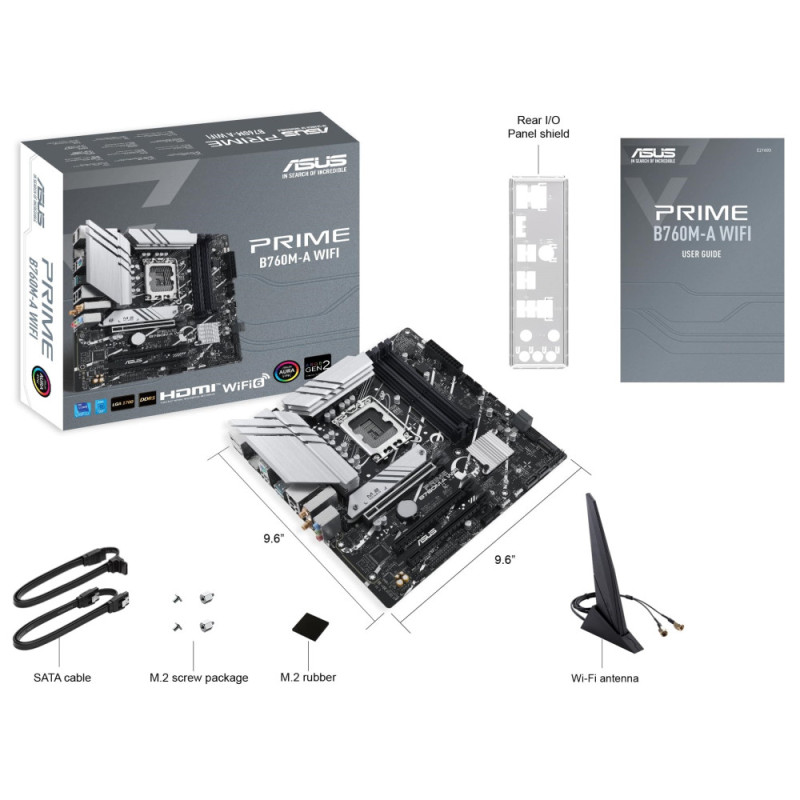

Package contents:SATA Cable, I/O Shield, M.2 Screw Package, User Manual, M.2 Rubber Package, Wi-Fi moving antenna

Towards:gaming (overclocking)

Form Factor:micro-ATX

Delivery

Nova Poshta by courier around the city

according to the carrier's tariffs

Nova Poshta at the branch and post office

according to the carrier's tariffs

Payment

ApplePay

payment on account

in cash

ASUS Motherboard PRIME B760M-A WIFI D4 s1700 B760 4xDDR4 M.2 HDMI DP Wi-Fi BT mATX (90MB1CX0-M1EAY0)

6299.00 ₴

Description

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Tags: ASUS, Motherboard, PRIME, B760MA, WIFI, D4, s1700, B760, 4xDDR4, M2, HDMI, DP, WiFi, BT, mATX, 90MB1CX0M1EAY0

Specifications

Additional information

Features

S/PDIF out header, CPU OPT Fan connector, CPU fan header, Front panel audio connector, clear CMOS header, Synchronization backlight Asus Aura Sync, ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, ASUS Exclusive Software, ASUS EZ DIY, Addressable Gen 2 header, COM port header, AI Suite 3, Digi+ VRM, SPI TPM header, Fan Xpert 2+, Chassis Fan headers

Package contents

SATA Cable, I/O Shield, M.2 Screw Package, User Manual, M.2 Rubber Package, Wi-Fi moving antenna

Audio settings

Sound

7.1

S/P-DIF

Есть

Chipset

Northbridge (chipset)

Intel B760

Connecting drives

Connection interface

SATA 3, M.2

SATA3 (6 Gb / s)

4 ports

Support software RAID

Есть 0/1/5/10

Connection connectors

USB, pcs

16 (6 задніх, 10 передніх)

USB 2.0, pcs

7 (4 задніх Type-A, 2 передніх роз'єми з підтримкою 4 додаткових портів, 1 передній роз'єм з підтримкою 1 додаткового порту)

USB 3.2 Gen 1

3 (2 front connectors with support for 4 additional ports, 1 front Type-C connector)

USB 3.2 Gen 2

2 (rear Type-A)

M.2 connector

PS/2, pcs

1 (клавіатура/миша)

CPU

Connection type

LGA1700

For processors

Intel

Processor compatibility

Intel Core 13th Generation, Intel Core 12th Generation

Guarantee

36 мес.

Main

Towards

gaming (overclocking)

Form Factor

micro-ATX

Network interfaces

LAN (RJ-45)

2.5 Gbps

Number of LAN-ports

Wi-Fi

Есть 6

Bluetooth

Есть v5.2

LAN-Controller Model

Realtek®

Physical

Dimensions (HxW)

244x244

Main power connector

24+8 -pin

RAM

Connector type

DDR4

4 slots

Maximum operating frequency, MHz

5333

The maximum amount of memory, GB

128

Support for XMP

Есть

Video settings

Graphical interface

PCI-E x16 4.0

HDMI Output

Есть

Display Port

Есть
