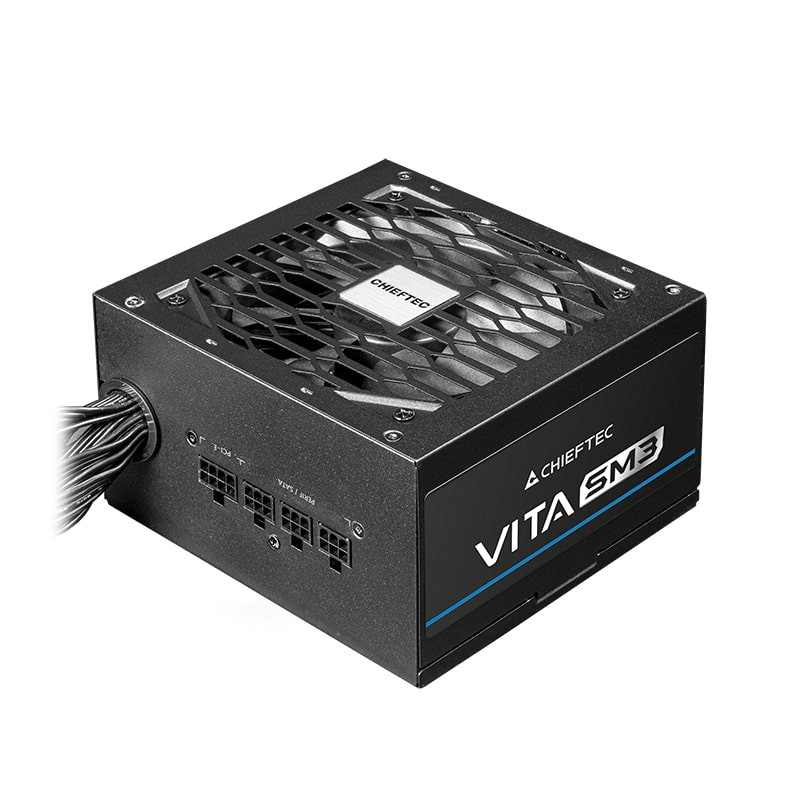

Chieftec PSU Vita SM3 (650W), >85%, 80+ Bronze, 120mm, 1xMB 24pin(20+4), 2xCPU 8pin(4+4), 3xMolex, 6xSATA, 2xPCIe 8pin(6+2), 1xPCIe GEN5 16pin, Modular (BPX-650-C)

Brand: Chieftec Product Code: BPX-650-C
0
All about product
Description
Specification
Reviews 0
Questions0
In Stock
3259.00 ₴
Found cheaper?
Guarantee:24 мес.
A type:for PC
The weight, kg:1.9
Security:UVP (Under Voltage Protection), OTP (over temperature protection), AFC (Automatic fan speed control), SIP (Surge Protection), OPP (overload protection), OVP (over voltage protection), SCP (short circuit protection), OCP (Over Current Protection)
Power, V:650
Delivery
Nova Poshta by courier around the city Nova Poshta by courier around the city
according to the carrier's tariffs
Nova Poshta at the branch and post office Nova Poshta at the branch and post office
according to the carrier's tariffs
Payment
ApplePay ApplePay
payment on account payment on account
in cash in cash
Chieftec PSU Vita SM3 (650W), >85%, 80+ Bronze, 120mm, 1xMB 24pin(20+4), 2xCPU 8pin(4+4), 3xMolex, 6xSATA, 2xPCIe 8pin(6+2), 1xPCIe GEN5 16pin, Modular (BPX-650-C)
3259.00 ₴
Description
The CHIEFTEC Vita SM3 650W power supply is designed for modern desktop PC configurations. Its 80+ Bronze certification supports balanced power efficiency during everyday use. Support for ATX 3.1 and PCIe GEN5 enhances compatibility with current hardware. Modular cabling helps keep the system interior clean and organized. A quiet 120 mm fan provides consistent cooling.

Tags: Chieftec, PSU, Vita, SM3, 650W, 85, 80, Bronze, 120mm, 1xMB, 24pin204, 2xCPU, 8pin44, 3xMolex, 6xSATA, 2xPCIe, 8pin62, 1xPCIe, GEN5, 16pin, Modular, BPX650C

Specifications
Additional information
Security
UVP (Under Voltage Protection), OTP (over temperature protection), AFC (Automatic fan speed control), SIP (Surge Protection), OPP (overload protection), OVP (over voltage protection), SCP (short circuit protection), OCP (Over Current Protection)
Guarantee
Guarantee
24 мес.
Length of cables
MB, mm
650
MOLEX, mm
450 /120/120 мм
Main
A type
for PC
Physical
The weight, kg
1.9
Dimensions (HxWxD )
86 x 150 x 140
Power
Power, V
650
Power connectors
Connectors
3 x Molex, 6 x SATA, 1 х 20+4 PIN ATX, 16 PIN 12V - 2 x 6, 2 x 8 PIN PCIe (6+2) Modular, 2 x 8 PIN EPS (4+4)
MB/CPU Power Supply
20+4 pin
SATA, pcs
6
PCI-E 8pin, pcs
2 (6+2)
Molex (IDE), pcs
3
8pin EPS (4+4), pcs
2
Specification
Type PFC
active
Fan diameter, mm
120
80 PLUS Certificate
bronze
Input voltage
100-240
Frequency
50-60
Maximum load
+3.3V - 18A, +5V - 18A, +12V1 - 54.1A, +5VSB - 3.0A / 15W, -12V - 0.3A / 3.6W
ATX 12V standard.
3.1
Overvoltage protection
Есть
Protection against excess current
Есть
Short circuit protection
Есть
Overheat protection
Есть
Combined load
+5V & +3,3V combined 100W, +12V1, +12V2 combined 650W
